Electric Motor Mixing Concrete Pump 6MPa Used In Construction Sites

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

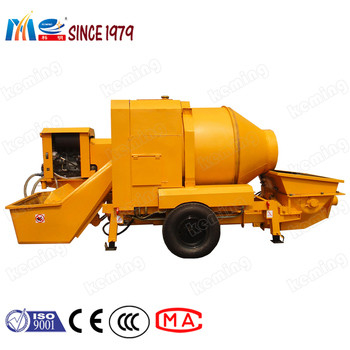

Electric Motor Mixing Concrete Pump 6MPa Used In Construction Sites

Electric Motor Mixing Concrete Pump 6MPa Used In Construction Sites
Electric Motor Mixing Concrete Pump 6MPa Used In Construction Sites
video play

Large Image :  Electric Motor Mixing Concrete Pump 6MPa Used In Construction Sites

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: KEMING Mixing Concrete Pump
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product Name: KEMING Mixing Concrete Pump Driven Mode: Electric Motor
Max. Output Pressure: 6MPa After-sales Service: Online Video Support
High Light:

Electric Motor Mixing Concrete Pump

,

6MPa Mixing Concrete Pump

Labor Cost Saver KEMING Mixing Concrete Pump Used in Construction Sites

KEMING Mixing Concrete Pump Information:

1. KEMING Mixing Concrete Pump combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.

2. Concrete pump has double cylinder hydraulic pump system with reliable performance.

KEMING Mixing Concrete Pump Technical Parameters:

Items Unit Parameters
KBT2506/JZM450 KBT2506/JZM350 KBT2006/JZM300 KBT20/JZC350 KBT0804/JZC200
Capacity m3/h 25(18) 25(18) 20(13) 20(15) 8(6)
Max. aggregate size mm 40 40 40 40 30
Delivery pipe mm DN125 DN125 DN125 DN125 DN125
Max. dist horizontally m 200 200 150 150 100
vertically m 80(60) 80(60) 60(40) 60(40) 30
Mixer type   JZM450 JZM350 JZM300 JZC350 JZC200
Charge hopper L 720 560 500 560 300
Discharge hopper L 450 350 300 350 200
Diameter of drum mm 1550 1440 1260 1440 1000
Output pressure Mpa 6-8 6-8 5-8 5-8 3-5



KEMING Mixing Concrete Pump Application:

1. KEMING Mixing Concrete Pump combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.

2. Concrete pump has double cylinder hydraulic pump system with reliable performance.

Electric Motor Mixing Concrete Pump 6MPa Used In Construction Sites 0



FAQ

---Concrete Pump, Cement Pump, Mortar Pump, Mud Pump

1. Q: Which pump model should we choose?

A: To recommend the most suitable model, please tell us:

- Material: composition, max aggregate size

- Capacity (-m3/h) :

- Delivery distance (horizontally / vertically):

- Grouting pressure:

- Driven type: electric motor, diesel engine, pneumatic motor



2. Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.



3. Q: Can we have customized model?

A: Yes. Customized production and OEM production are available according to your actual requirements.
