Product Details:
Payment & Shipping Terms:
|
| Product Name: | Small Concrete Pump | Hopper Capacity: | 0.45m³ |
|---|---|---|---|
| Power: | 176Kw | Type: | Mobile Concrete Pump |
| Max. Theoretical Vertical Conveying Distance: | 150m | Dimension: | 4200*1450*1800mm |
| Max. Theoretical Horizontal Conveying Distance: | 500m | Pump Valve: | S Valve |

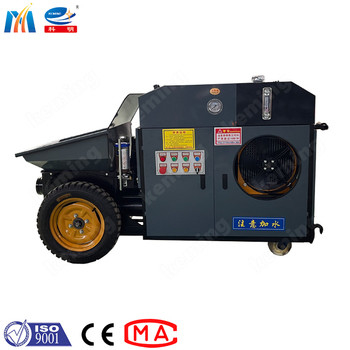

Small Concrete Pump is a compact and light weight concrete pumping machine that offers excellent performance and productivity. It is designed to provide reliable and efficient concrete pumping services for a variety of applications. With its dimension of 4200*1450*1800mm, the mini concrete pump features a S valve pump, supporting a maximum aggregate diameter of 40mm and a maximum theoretical vertical conveying distance of 150m, as well as a cylinder diameter of Φ100/200mm. This small concrete pump is an ideal choice for those who are looking for a reliable and cost-effective way to pumping concrete. It is perfectly suitable for small-scale construction projects, such as residential buildings, bridges, road construction, tunnel construction, and more.
| Product Name | Small Concrete Pump |
|---|---|
| Weight | 3000Kg |
| Cylinder Diameter | Φ100/200mm |
| Pump Valve | S Valve |
| Max. Theoretical Horizontal Conveying Distance | 500m |
| Max. Theoretical Vertical Conveying Distance | 150m |
| Max. Aggregate Diameter | 40mm |
| Dimension | 4200*1450*1800mm |
| Delivery Pressure | 8Mpa |
| Max. Theoretical Conveying Capacity | 60m³/h |
The KEMING KMB concrete pump is a piston type concrete pump with a CE certification. It has a minimum order quantity of one unit, a delivery pressure of 8Mpa, and a cylinder diameter of Φ100/200mm. This mobile concrete pump has dimensions of 4200*1450*1800mm and a weight of 3000Kg.
KEMING KMB concrete pump is suitable for a variety of construction projects, such as high-rise buildings, hydroelectric power plants, tunnels, bridges, and more. It is highly efficient, and can pump concrete quickly and accurately. The KEMING KMB concrete pump is also well-suited for narrow spaces as it is relatively small and easy to move.
The KEMING KMB concrete pump can also be used for other applications, such as refractory spraying, mortar spraying, and other industrial projects. It is easy to operate and maintain, and can be used in a wide range of weather conditions. This concrete pump is also widely used in the mining industry, as it is robust and durable.
Small Concrete Pumps are packaged and shipped in boxes that are lined with foam to ensure that the parts do not move during transit. The box is then secured with plastic straps to prevent any shifting during transit. The boxes are also labeled with the product name, model number, and the name of the sender/recipient.
The pumps are then loaded on to a freight truck for delivery. The freight truck is inspected before departure to ensure that all the parts are secure and that the items are insured for any damages that may occur during transit.
The delivery is tracked and the customer is kept informed of any changes in delivery status. Upon arrival, the customer is notified and the pump is delivered to the designated location.
