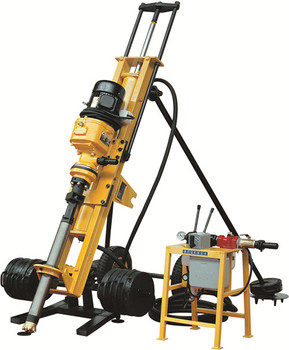

| Product Name: | Simple Structure KEMING Drilling Rig | Borehole Diameter: | 50-130mm |
|---|---|---|---|
| Borehole Depth: | Depther Than 15m | After-sales Service: | Online Video Service Support |
| High Light: | Simple Structure KEMING Drilling Rig,130mm Concrete Pump Drilling Rig |
||
1. Rotator reducer with high torque ensure operating reliable in the case of strong vibrations or heavy duty.
2. Propulsion system equipped with relief valve, adjusting propulsion, ensure excellent performance.
3. Low center of gravity, easy to fold and to move.
4. Drilling rig tools widely used in mines, transportation, defense, waterconservancy, rock engineer, especially rugged terrain.
5. Different types, such as hydraulic, electric and pneumatic.
6. Simple structure, easy to operate, low cost.
| Model | KQD70 | KQD100A | KQF100 | KQJ100A electric | KQJ100A diesel | |
| Rock hardness | F=6-20 | F=6-20 | F=6-20 | F=6-20 | F=6-20 | |
| Borehole Diameter | mm | 50-80 | 68-130 | 68-130 | 68-130 | 68-130 |
| Borehole Depth | m | ≥15 | ≥20 | ≥20 | ≥20 | ≥20 |
| One-time advance length | mm | 1000 | 1000 | 1000 | 1000 | 1000 |
| Swing speed | r/min | 90 | 90 | 110-160 | 0-70 | 0-70 |
| Air consumption | m3/min | ≥3.5 | ≥7 | ≥12 | ≥7 | ≥7 |
| Working air pressure | Mpa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Cylinder diameter | mm | 90 | 140 | 140 | 50 | 50 |
| Max. lifting force | N | 4200 | 7000 | 7000 | 15000 | 15000 |
| Max. advance force | N | 3500 | 5000 | 5000 | 4500 | 4500 |
| Whole weight | kg | 175 | 260 | 260 | 260 | 260 |
| Driving power | kw | 3 | 4 | 4 | 7.5 | 12.1 |
Simple Structure KEMING Drilling Rig Application:
1. Rotator reducer with high torque ensure operating reliable in the case of strong vibrations or heavy duty.
2. Propulsion system equipped with relief valve, adjusting propulsion, ensure excellent performance.
3. Low center of gravity, easy to fold and to move.
4. Drilling rig tools widely used in mines, transportation, defense, waterconservancy, rock engineer, especially rugged terrain.
5. Different types, such as hydraulic, electric and pneumatic.
6. Simple structure, easy to operate, low cost.
FAQ
1. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
2. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
3.Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
