Product Details:
Payment & Shipping Terms:
|

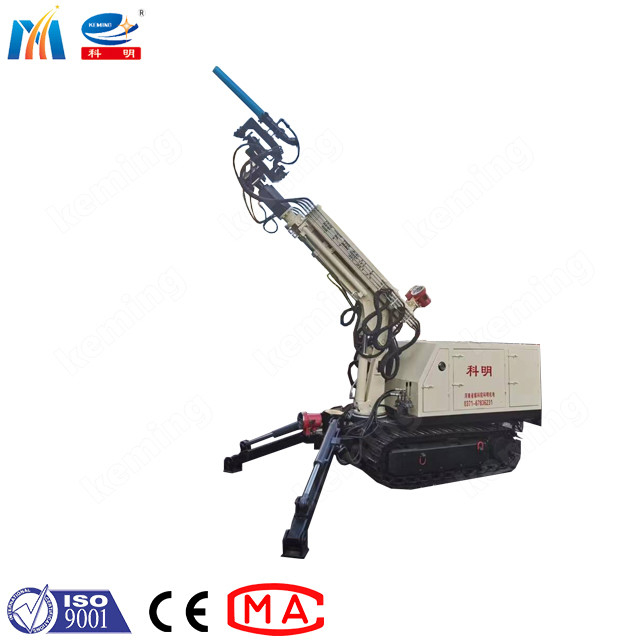

Product: | KPC Robotic Shotcrete Equipment | Type: | Wet Shotcrete Or Dry Shotcrete |
---|---|---|---|
Model: | KPC-6A, KPC-8A | Maintencance: | Online Technic Support |
High Light: | hydraulic drive Robotic Shotcrete Equipment,11kw Robotic Shotcrete Equipment,KPC Robotic Shotcrete Equipment |
1.Concrete spray is suitable for dry, wet or wet and dry mixing.
2.independent hydraulic drive, 4 hydraulic legs, greatly improving the stability of the equipment during the spray process.
3.The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.
4.unique protective cover, can protect the robot arm.
Parameter |
KPC-6A |
KPC-8A |
|
Max. operation length |
7000 |
8400 |
|
Outrigger expansion width |
2300 |
2500 |
|
Support shotcrete capacity m3/h |
0-10 |
0-25 |
|
Boom |
Max. spraying H |
6.2m |
8.2m |
Max. spraying W | 7m | 11m | |
Hose id |
51/57/64mm |
||
Arm frame telescopic dis. |
2.35m |
2.7m |
|
Boom expansion max. L |
3.5m |
6m |
|
Chassis |
Max. walk gradient |
20% |
25% |
Walking speed |
0.6km/h |
0.5km/h |
|
Ground dis. |
150mm |
390mm |
|
Power |
Hydraulic system output |
7.5kw |
11kw |
Voltage |
380-1140V |
1.Concrete spray is suitable for dry, wet or wet and dry mixing.
2.independent hydraulic drive, 4 hydraulic legs, greatly improving the stability of the equipment during the spray process.
3.The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.
4.unique protective cover, can protect the robot arm.
As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
