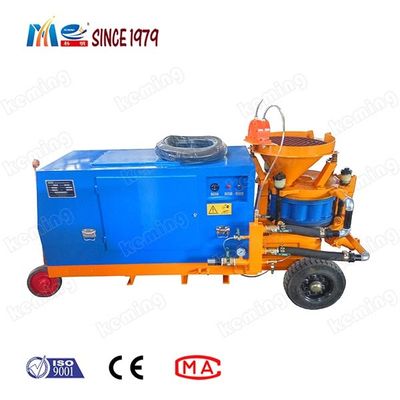

13.2kW Concrete Shotcrete Machine

13.2kW Concrete Shotcrete Machine

  • High Light

    13.2kW Concrete Shotcrete Machine

    ,

    0.6Mpa Concrete Shotcrete Machine

  • Capacity
    5~5.5m3/h
  • Pressure
    0.6Mpa
  • Max Aggregate
    20mm
  • Main Power
    13.2kW
  • Horz. Distance
    200m
  • Vert. Distance
    40m
  • Place of Origin
    CHINA
  • Brand Name
    KEMING
  • Certification
    CE,MA
  • Model Number
    KSP-5D
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiation
  • Packaging Details
    Export Wooden Case
  • Delivery Time
    10~20 Work Day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set/Per Month

13.2kW Concrete Shotcrete Machine

Diesel Engine Shotcreting Machine For Wet Or Damp Mix Shotcreting

Shotcrete Machine Application:

1. KPZ-5D Diesel Shotcrete Machine can be used for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.

2.Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface

3. KPZ-5D Diesel Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

Shotcrete Machine Features:

1. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).

2. KPZ-5D Diesel Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, diesel engine etc.

3. KPZ-5D Diesel Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

Shotcrete Machine Parameter:

Model
KPZ-5D Diesel Engine Shotcrete Machine
Capacity
4.5-5.5 m3/h
Max. conveying dist.
≤ 200m
Suitable mixture ratio
cement/sand and gravel=1:4~5
Suitable water-cement ratio
<0.4
Max aggregate size
φ15mm
Spraying hose ID.
φ51mm
Operating pressure
0.2~0.6Mpa
Air consumption
7~8 m3/min
Power type
Diesel engine
Diesel power
13 KW (18hp)
Dimensions(Length×width×height)
2400×850×1200mm
Total weight
880kg
