Product Details:
Payment & Shipping Terms:
|
| Product: | KEMING Shotcrete Robot | Applicable Materials: | Wet Concrete / Dry Concrete |
|---|---|---|---|
| Maximum Spraying Height: | 8.2m | After Warranty Service: | Video Support |
| High Light: | Wet concrete Shotcrete Robot Machine,4 hydraulic legs Shotcrete Robot Machine,Shotcrete Robot Machine For Hydropower Station |
||

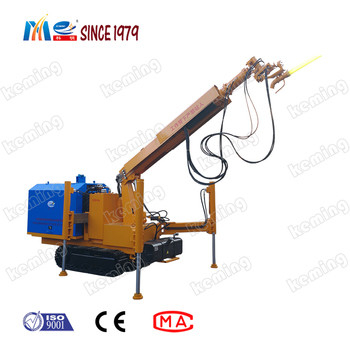

1. KEMING Shotcrete robot Machine has 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.
2. It adopts explosion-proof electrical design and is able to be used in underground coal mine environment.
3. KEMING Shotcrete robot Machine is suitable for dry, wet or wet and dry mixing material.
1. KEMING Shotcrete robot Machine is widely applied in mining well, hydropower station, urban construction, hydropower station and other engineering constructions.
2. It is an ideal equipment for any working space, especially in narrow tunnel construction.
3. KEMING Shotcrete robot Machine can be used for slope stability, excavation and support, shotcrete support of small vertical shaft in coal mine, tunnel or power station construction.
| Parameter | Model | KPC-8A | KPC-6A |
| Dimensions in transport mode | 4500*1080*2200mm | 2500*900*1680mm | |
| Weight | 3000kg | 2400kg | |
| Max. length of operation | 8400mm | 7000mm | |
| Outrigger expansion width | 2500mm | 2300mm | |
| Support shotcrete capacity | 0-25m3/h | 0-10m3/h | |
| Boom parameters | Max.spraying height | 8.2m | 6.2m |
| Max. spraying width | 11m | 7m | |
| Hose ID | 51/57/64mm | 51/57/64mm | |
| Arm frame telescopic distance | 2.7m | 2.35m | |
| Boom expansion max. length | 6m | 3.5m | |
| Chassis | Max. gradient of walking | 25% | 20% |
| Ground slope | 2% | 2% | |
| Walking speed | 0.5km/h | 0.6km/h | |
| Ground distance | 390mm | 150mm | |
| Power | Hydraulic system output | 11kw | 7.5kw |
| Voltage | 380-1140v | 380-1140v |
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products.
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
