Automatic Feeder Concrete Shotcrete Machine For Underground Project

Automatic Feeder Concrete Shotcrete Machine For Underground Project
Automatic Feeder Concrete Shotcrete Machine For Underground Project Automatic Feeder Concrete Shotcrete Machine For Underground Project Automatic Feeder Concrete Shotcrete Machine For Underground Project

Large Image :  Automatic Feeder Concrete Shotcrete Machine For Underground Project

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KZL7x2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Max Aggregate Size: 30mm Warranty: 1 Year
Weight: 1600 Kg Hose Inner Diameter: 51/57/64
Voltage: 380 V Dimension(l*w*h): 3250×1200×1300 Mm
Power(w): 22 Kw Condition: New
After-sales Service Provided: Instruction Book, Online Support Max. Conveying Distance: 300m
Certification: CE, ISO, MA Color: Yellow, Customized
Application: Shotcrete , Plastering Project
High Light:

Automatic Feeder Concrete Shotcrete Machine

,

Underground Project Concrete Shotcrete Machine

,

Plastering Project Concrete Shotcrete Machine

Automatic Feeder Concrete Shotcrete Machine For Underground Project

Introduction:

Double hoppers can realize continuous operation, with one hopper for loading and one hopper for storage, saving construction time. The integrated hopper realizes automatic feeding and reduces labor.

1. KZL-7*2 Dry Shotcrete Machine used for dry or half wet concrete spray construction.
2. for concrete spraying operation in coal mining, tunnels, hydropower and underground engineering, building and supporting construction, and other repairing projects.





Advantages of shotcrete vehicles: Tunnel construction is one of the harshest environments in existing engineering construction, and it is a high-risk environment operation. The shotcrete truck has special mechanical automatic feeding equipment, only 2~3 people can operate the machine freely. Compared with manual feeding, 6~10 workers are required to load the material to ensure that a shotcrete machine is working properly. It saves a lot of manpower and reduces workers in high-risk environments.

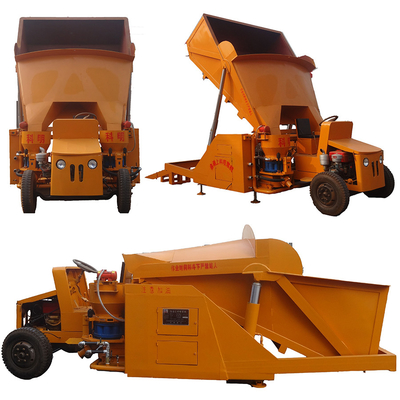

The characteristics of the shotcrete truck:

1. This product adopts self-powered wheeled walking and flexible steering. It is the first in the industry to adopt a truck chassis. The relevant parts and components adopt famous products, and the quality is stable, sturdy and durable.

2. Advanced hydraulic system adopts full hydraulic system in the same industry.

3. It has an independent quick-setting admixture system. After the quick-setting admixture is added to the accelerating admixture hopper, it can be adjusted at will according to the actual dosage.

4. The automatic feeding process of the hopper is that the outlet of the hopper is directly aligned with the outlet of the shotcrete machine.

The mixing process does not go through the manual lifting process. Compared with the previous manual, the operator's working conditions are improved, the labor intensity is reduced, and the labor is saved. Labor costs.

Automatic Feeder Concrete Shotcrete Machine For Underground Project 0





Specification:

items    unittechnical parameter
max. concrete outputm3/h15
aggregate size maxmm<30
concrete pumping pressureMPa8
working oil pressure maxMPa19
conveying pipe IDmm51/57/64
concrete slumpcm10-18
concrete cylinder IDmm120
delivery cylinder number 2
fuel tank capacityL400
conveying dist.max.horizontal vertically mortar m300/100
concretem160/80
main motor power kw22
material feeding height mm1100
dimension mm3250x1200x1300
weight kg1600

Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Automatic Feeder Concrete Shotcrete Machine For Underground Project 1Automatic Feeder Concrete Shotcrete Machine For Underground Project 2Automatic Feeder Concrete Shotcrete Machine For Underground Project 3

Company information:

Automatic Feeder Concrete Shotcrete Machine For Underground Project 4

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products.
Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Automatic Feeder Concrete Shotcrete Machine For Underground Project 5Automatic Feeder Concrete Shotcrete Machine For Underground Project 6

Achievements: Our company has obtained more than 20 national invention patents and many Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Automatic Feeder Concrete Shotcrete Machine For Underground Project 7Automatic Feeder Concrete Shotcrete Machine For Underground Project 8Automatic Feeder Concrete Shotcrete Machine For Underground Project 9

Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence Service Concept: Serve consumers and satisfy consumers

Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based Be responsible for the staff, make career plan, live and work in peace.

Automatic Feeder Concrete Shotcrete Machine For Underground Project 10

Exhibition:

Bauma Shanghai 2018

Automatic Feeder Concrete Shotcrete Machine For Underground Project 11Automatic Feeder Concrete Shotcrete Machine For Underground Project 12

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
