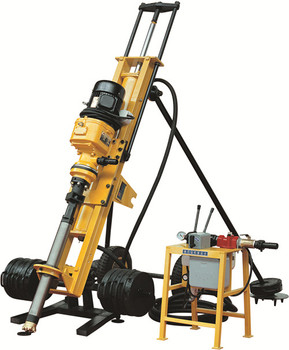

| Product: | KEMING Easy Fold Drilling Rig | Advantage: | Excellent Performance |
|---|---|---|---|
| Rock Hardness: | F=6-20 | After-sales Service: | Online Supports In Video |
| High Light: | 3kw Easy Fold Drilling Rig,Drilling Rig Fold Machine,0.5Mpa Drilling Rig machine |
||
1. Simple structure, easy to operate, low cost.
2. Propulsion system equipped with relief valve, adjusting propulsion, ensure excellent performance.
3. Different types, such as hydraulic, electric and pneumatic.
KEMING Easy Fold Drilling Rig Application:
1. open-air rock drilling equipment
2. national defense projects
| Model | KQD70 | KQD100A | KQF100 | KQJ100A electric | KQJ100A diesel | |
| Rock hardness | F=6-20 | F=6-20 | F=6-20 | F=6-20 | F=6-20 | |
| Borehole Diameter | mm | 50-80 | 68-130 | 68-130 | 68-130 | 68-130 |
| Borehole Depth | m | ≥15 | ≥20 | ≥20 | ≥20 | ≥20 |
| One-time advance length | mm | 1000 | 1000 | 1000 | 1000 | 1000 |
| Swing speed | r/min | 90 | 90 | 110-160 | 0-70 | 0-70 |
| Air consumption | m3/min | ≥3.5 | ≥7 | ≥12 | ≥7 | ≥7 |
| Working air pressure | Mpa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Cylinder diameter | mm | 90 | 140 | 140 | 50 | 50 |
| Max. lifting force | N | 4200 | 7000 | 7000 | 15000 | 15000 |
| Max. advance force | N | 3500 | 5000 | 5000 | 4500 | 4500 |
| Whole weight | kg | 175 | 260 | 260 | 260 | 260 |
| Driving power | kw | 3 | 4 | 4 | 7.5 | 12.1 |
