| Product: | JZM Friction Concrete Construction Mixer | Application: | Mixing Concrete Mortar |
|---|---|---|---|
| Charging Volume: | 350-500L | After-sales Service: | Technical Supporting |
| High Light: | JZM Friction Grout Mixer Machine,City Construction Concrete Grout Mixer Machine,500L Concrete Grout Mixer Machine |
||

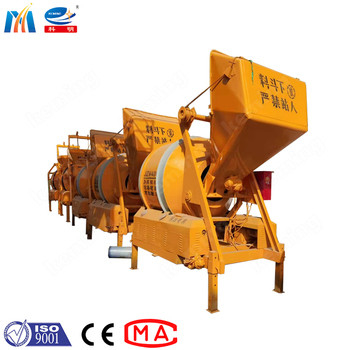

1. This mixer is a drum type concrete mixer with positive rotation mixing and reverse discharge type.
2. The JZM series friction mixer is a forward-rotation mixing and reverse-discharge type concrete mixer.
3. This machine adopts friction transmission of rubber supporting wheels, has the advantages of low noise, stable operation, convenient operation and movement, good mixing quality, high production efficiency, high degree of automation, etc.
JZM Friction Concrete Construction Mixer Feature:
1. JZM friction concrete mixer is a type of equipment between forced mixers and civil mixers.
2. It has the advantages of convenient operation and movement, high mixing quality, and can mix plastic and semi-dry concrete.
3. It can be matched with the batching device to form a small and medium mixing station, suitable for general construction sites, roads, bridges, hydropower and other projects are suitable for construction in urban residential areas.
|
Model |
JZM350 |
JZM400 |
JZM450 |
JZM500 |
|
Charging volume (L) |
350 | 400 | 450 | 500 |
|
Discharging capacity (L) |
560 | 640 | 720 | 800 |
|
Productivity (m3/h) |
10-13 | 12-18 | 14-19 | 16-20 |
|
Rev of drum (r/min) |
15 | 15 | 15 | 15 |
|
Max. Aggregate size (mm) |
60 | 60 | 60 | 60 |
|
Water-supply error |
≤2% | ≤2% | ≤2% | ≤2% |
|
Stirring motor(kW) |
5.5 | 5.5 | 7.5 | 5.5*2 |
|
Hoisting motor(kW) |
4.5 | 4.5 | 4.5 | 4.5 |
|
Water pump motor(kw) |
0.55 | 0.75 | 0.75 | 1.1 |
|
Tires |
650-16 | 650-16 | 700-16 | 700-16 |
|
Towing speed(km/h) |
≤20 | ≤20 | ≤20 | ≤20 |
|
Dimension(L*W*H)(m) |
3.8*2.05*2.69 | 3.8*2.2*2.85 | 4*2.3*2.9 | 5.7*2.35*5.1 |
|
Machine Weight (kg) |
1950 | 2100 | 2400 | 2800 |
