Home ProductsConcrete Shotcrete Machine

Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized

Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized
Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized

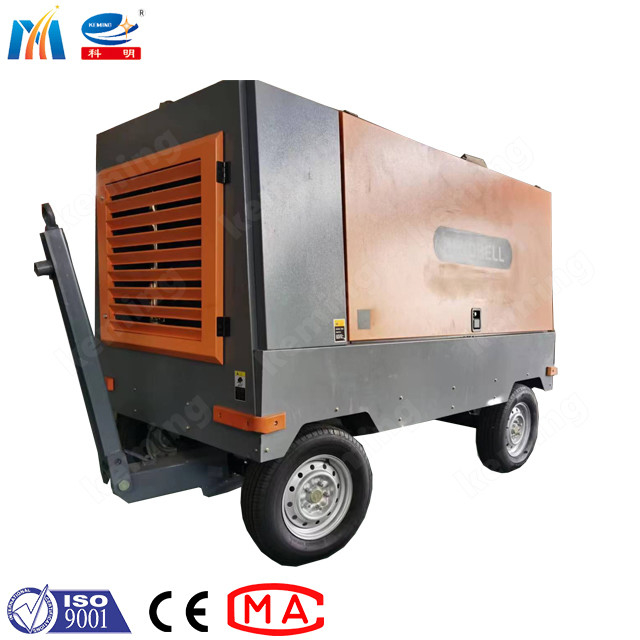

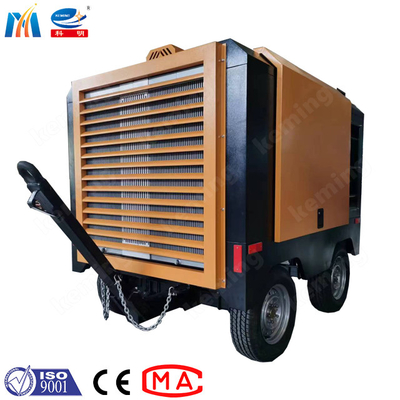

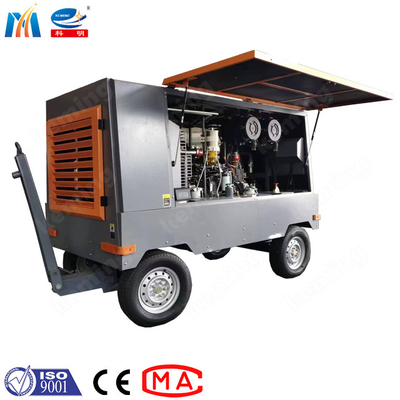

Large Image :  Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: SCY, SDY series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000-4000USD
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: T/T, Western Union
Supply Ability: 20 sets per month
Detailed Product Description
Warranty: 12 Month Weight: Vary With The Model
Dimension(l*w*h): Vary With The Model Condition: New
After-sales Service Provided: Instruction Book, Online Support Certification: CE, ISO, MA
Color: Yellow, Customized Application: Shotcrete , Plastering Project
High Light:

Air Compressor Plastering Concrete Shotcrete Machine

,

Computerized Plastering Concrete Shotcrete Machine

,

ISO Concrete Shotcrete Machine





Introduction:

1. Heavy duty SKF bearings, advanced single stage, or dual stage made for oil injected air end.

2. Energy saving full series, class 2 energy efficiency, Extra Large air displacement, more cost saving.

3. Computerized automatic control and protection system.

4. High quality heavy duty filtration system with safety filters.



Specification:

Model

Nominal Pressure

(Mpa)

Free Air Delivery

(m³/min)

Motor Power

kW (HP)

Weight(kg)
55SCY-8 two wheels 0.8 8 55 (75) 1800
75SDY-8 four wheels 0.8 13.6 75 (100) 1960
75SDY-10 four wheels 1.0 10 75 (100) 1850
75SDY-14.5 two wheels 1.45 10 75 (100) 2000
90SDY-8 four wheels 0.8 16 90 (120) 2300
90SDY-14.5 two wheels 1.45 13 90 (120) 2200
90SCY-13 Four wheels 1.3 16 90 (120) 2500
110SDY-8 four wheels 0.8 20 110 (150) 2600
110SDY-17 four wheels 1.7 15 110 (150) 3000
132SDY-8 four wheels 0.8 24 132 (180) 2750
132SDY-13 four wheels 1.3 17 132 (180) 2700
132SDY-17 four wheels 1.7 15 132 (180) 2700
Model

Nominal Pressure

(Mpa)

Free Air Delivery

(m³/min)

Motor Power

kW (HP)

Weight(kg)
100SCY-8 two wheels 0.8 8 74 (100) 2000
160SCY-8 four wheels 0.8 13.6 118 (160) 2300
160SCY-10 four wheels 1.0 12 118 (160) 2300
160SCY-14.5 two wheels 1.45 11 118 (160) 2200
190SCY-15 four wheels 1.5 15 140 (190) 2500
190SCY-15 two wheels 1.5 15 140 (190) 2400
190SCY-13 Four wheels 1.3 16 140 (190) 2900
215SCY-8 four wheels 0.8 17 158 (215) 2600
215SCY-8 four wheels 0.8 21 158 (215) 3300
220SCY-17 four wheels 1.7 15 162 (220) 3300
260SCY-18 four wheels 1.8 17 191 (260) 3700
265SCY-8 four wheels 0.8 24 194 (265) 3700

Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification. In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.

In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 0Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 1Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 2

Why choose us :

Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 3

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 4Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 5Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 6

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Application: Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 7Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 8

Exhibition:

Bauma Shanghai 2018

Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 9Air Compressor ISO Concrete Shotcrete Machine Plastering Computerized 10

FAQ:

1. Q:How to pay for this order?

A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
