Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsConcrete Shotcrete Machine

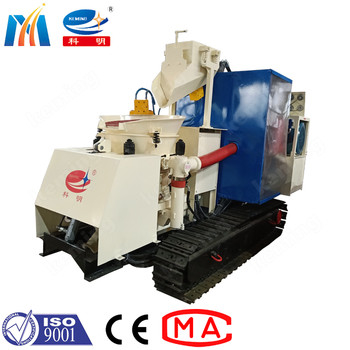

Full Hydraulic Control Remote Conveying Gunite Machine Saving Labor Workers

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Full Hydraulic Control Remote Conveying Gunite Machine Saving Labor Workers

Full Hydraulic Control Remote Conveying Gunite Machine Saving Labor Workers
Full Hydraulic Control Remote Conveying Gunite Machine Saving Labor Workers
video play

Large Image :  Full Hydraulic Control Remote Conveying Gunite Machine Saving Labor Workers

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: Full hydraulic Remote Conveying Gunite Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: Full Hydraulic Remote Conveying Gunite Machine Voltage: 380/660V Or 660/1140V
Cooling Method: Air Cooling After Warranty Support: Online Video Support
High Light:

Control Remote Conveying Gunite Machine

,

1140V Concrete Shotcrete Machine

,

Full Hydraulic Concrete Shotcrete Machine

Full hydraulic control KEMING Remote Conveying Gunite Machine saving labor workers

Full hydraulic Remote Conveying Gunite Machine Information:

1. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers.

2. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

3. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the pgysical and mental health of the operators.

Full hydraulic Remote Conveying Gunite Machine Technical Parameters:

raying part

Capacity

m3/h

2~7

Delivery distance

m

>300

Max. aggregate size

mm

≤20

Delivery pipe ID.

mm

φ51

Air consumption

m3/min

≤8

Rotor speed

r/min

11

Dedusting part

Capacity

m³/h

800

Pressure

Pa

2600

Walking mechanism

Way of walking

Crawler



Walking speed

km/h

≤1.5

Gradeability



≤15

Braking method



Hydraulic

Hydraulic system

Motor Power

kw

18.5

Fuel tank capacity

L

200

Cooling method



Air cooling


Full hydraulic Remote Conveying Gunite Machine Application:

1. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers.

2. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

3. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the pgysical and mental health of the operators.



Full Hydraulic Control Remote Conveying Gunite Machine Saving Labor Workers 0



Company Information Introduction:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
