Product Details:
Payment & Shipping Terms:
|

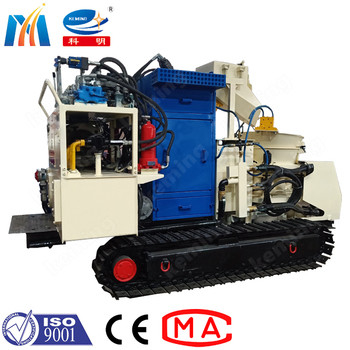

Product: | Dust Remote Conveying Gunite Machine | Max. Spraying Dis: | More Than 500m |
---|---|---|---|
Aggregate Size: | ≤20mm | After Warranty Service: | Provided Online Video Support |
High Light: | Remote Conveying Gunite Machine Dust Reduction,20mm Conveying Gunite Machine,dust Remote Conveying Gunite Machine |
1. High degree of automation, walking, spraying, dust removal and automatioc turning of the hopper base are realized by a set of hydraulic system, which is easy to operate nearby.
2. The whole set of equipment has only one motor, which greatly shortens the wiring and auxiliary time of the motor before and after the spraying operation.
3. The friction plate is automatically pressed hydraulically.
raying part |
Capacity |
m3/h |
2~7 |
Delivery distance |
m |
>300 |
|
Max. aggregate size |
mm |
≤20 |
|
Delivery pipe ID. |
mm |
φ51 |
|
Air consumption |
m3/min |
≤8 |
|
Rotor speed |
r/min |
11 |
|
Dedusting part |
Capacity |
m³/h |
800 |
Pressure |
Pa |
2600 |
|
Walking mechanism |
Way of walking |
Crawler |
|
Walking speed |
km/h |
≤1.5 |
|
Gradeability |
|
≤15 |
|
Braking method |
|
Hydraulic |
|
Hydraulic system |
Motor Power |
kw |
18.5 |
Fuel tank capacity |
L |
200 |
|
Cooling method |
|
Air cooling |
dust Remote Conveying Gunite Machine Application:
1. High degree of automation, walking, spraying, dust removal and automatioc turning of the hopper base are realized by a set of hydraulic system, which is easy to operate nearby.
2. The whole set of equipment has only one motor, which greatly shortens the wiring and auxiliary time of the motor before and after the spraying operation.
3. The friction plate is automatically pressed hydraulically.
FAQ
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
3.Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
