Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cellular Concrete Foaming Machine | Max. Aggregate Size: | 15 Mm |
|---|---|---|---|
| Hose Pump ID.: | 65 Mm | Warranty Service: | Technical Support In Warranty |
| High Light: | Cellular Concrete Foaming Machine,15mm Concrete Foaming Machine |
||

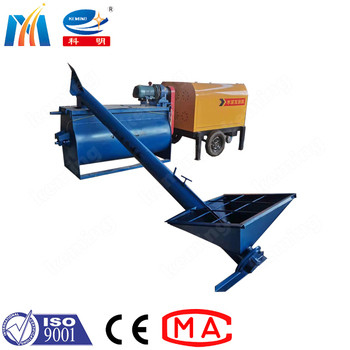

1. Cellular Concrete Foaming Machine combines feeding machine, foaming system, water adding device, delivery system, mixing system together.
2. Cellular Concrete Foaming Machine is automatic cement feeding, convenient to operate, automatic foaming of foaming agent, automatic mixing of cement slurry, automatic delivery of foaming concrete.
3. The machine adopts high pressure foaming technology with good foaming performance, unbreakable foaming bubble, even foaming technology, high quality, accurate (foaming amount can be precisely controlled within mg).
| Items | Unit | KFP-65-40A foam concrete machine |
| Main motor | KW | 7.5 |
| Output | m3/h | 10~12 |
| Vertical delivery dist. | m | 40 |
| Horizontal delivery dist. | m | 200 |
| Particle size | mm | ≤15 |
| Max. air pressure | Mpa | 3.0 |
| Output pressure | Mpa | 1.5 |
| Dimensions (length*width*height) | mm | 1800*1200*1500 |
| Main machine weight | Kg | 1300 |
| Mixer dimensions | mm | 1600*800*1300 |
| Mixer weight | Kg | 150 |
Cellular Concrete Foaming Machine Application:
1. Cellular Concrete Foaming Machine combines feeding machine, foaming system, water adding device, delivery system, mixing system together.
2. Cellular Concrete Foaming Machine is automatic cement feeding, convenient to operate, automatic foaming of foaming agent, automatic mixing of cement slurry, automatic delivery of foaming concrete.
3. The machine adopts high pressure foaming technology with good foaming performance, unbreakable foaming bubble, even foaming technology, high quality, accurate (foaming amount can be precisely controlled within mg).
Company Introduction
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
