Small Diesel Concrete Pump Conveying Machine 600kg For House Construction

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

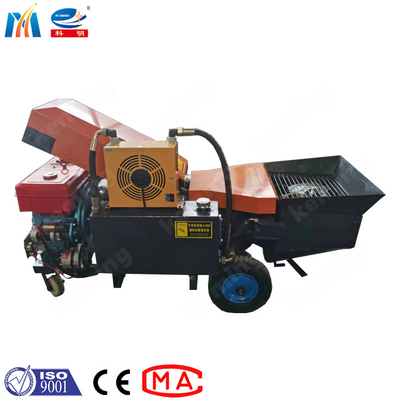

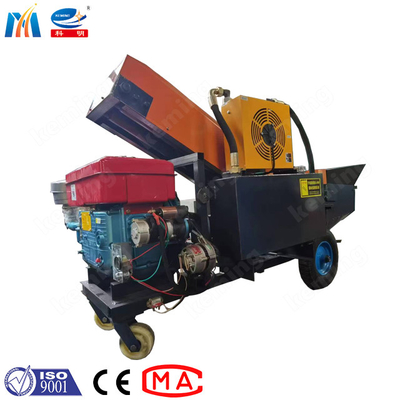

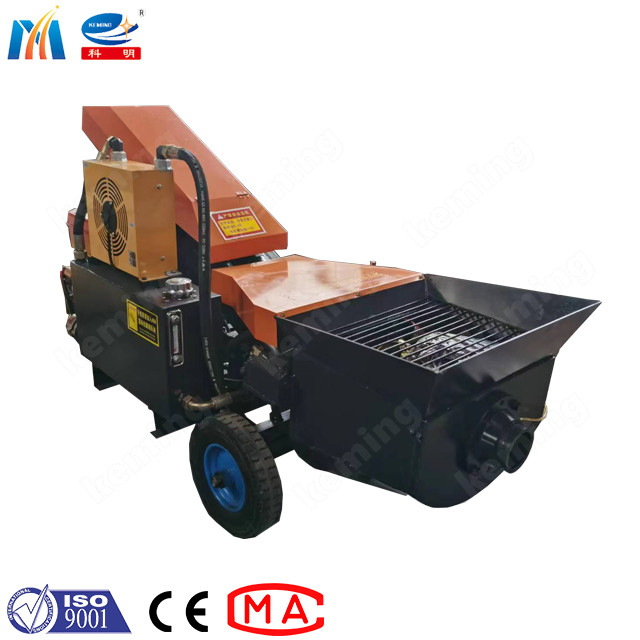

Small Diesel Concrete Pump Conveying Machine 600kg For House Construction

Small Diesel Concrete Pump Conveying Machine 600kg For House Construction
Small Diesel Concrete Pump Conveying Machine 600kg For House Construction Small Diesel Concrete Pump Conveying Machine 600kg For House Construction Small Diesel Concrete Pump Conveying Machine 600kg For House Construction

Large Image :  Small Diesel Concrete Pump Conveying Machine 600kg For House Construction

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KMB series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 3000-4000USD per set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: T/T, Western Union, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Weight: 600kg Condition: New
Power Type: Electrical Engine Warranty: 12 Month
After-sales Service Provided: Instruction Book, Online Support Color: Customized
Name: Concrete Pump
High Light:

small Diesel Concrete Pump Conveying Machine

,

600kg Diesel Concrete Pump

,

electrical engine Diesel Conveying Concrete Pump

Small Diesel Concrete Pump Concrete Conveying Machine For House Construction



Application:



Concrete pumping machine is a machine that uses pressure to continuously transport concrete along pipelines. Composed of pump body and delivery pipe.

According to the structure, it is divided into piston type, extrusion type and hydraulic diaphragm type.

As the concrete pumping machine has discharge pressure when pumping, so the pumping distance can reach 100m.

And the concrete pumping machine also have less spare parts, the main spare parts are the S tube, could change a new one after one year use.

We provide 30m conveying pipes for free to spport our first cooperate. the aggesgate size of the concrete could below 20mm, which more sutiable for smaller concrete conveying construction.



Features:



1. Optimal design of the hopper. low resistance parabolic S tube. suction excellent performance;
2. Configuration with a large row of imported most open pump and hydraulic components imported.
3. With Relay-based integrated electronic control system, simple and reliable, more user-friendly design; surfacing Shaped glasses plate, cutting ring is not only high hardness, and repair. use and low cost.
4. Can also choose the high life of carbide cutting ring plate glasses. Well-designed open.
5. Double-circuit hydraulic system, for the small impact: can lift guide rollers.



Specification:

Items Unit Parameter
KMB-50 KMB-40 KMB-30 KMB-20 KMB-10 KMB-8
Capacity m3/h 50(30-34) 40_25-30) 30(20-25) 20(15) 10(8) 8(6)
Max. aggregate size mm 40 30 20 20 25 15
Delivery pipe mm DN150/DN125 DN125/DN100 DN125/DN100 DN125/DN100 DN100/DN80 DN80
Max. dist horizontal m 300 300 300 200 150 50
vertical m 100/80 100/80 80/60 40 60 20
Diesel engine KW 84 56 44 40 40 none
Main oil pump   140 double 140/112 double 112/80 double 80 50 40
Cylinder diameter   200 180 140 120 140 120
Motor power KW 55 45 37 22 22 15/11
OutPut pressure Mpa 8-13 8-13 6-8 5-8 5-8 3-5

Certification:

It has more than 50 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “Keming” brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.

Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 0Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 1Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 2

Why choose us:

Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 3

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 4Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 5

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.



Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 6Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 7

Exhibition:

Bauma Shanghai 2018

Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 8Small Diesel Concrete Pump Conveying Machine 600kg For House Construction 9

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
