Product Details:
Payment & Shipping Terms:
|

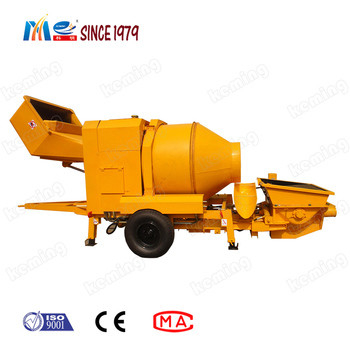

| Product Name: | KBT Concrete Mixer Pump | Outlet Opening Diameter: | 150mm |
|---|---|---|---|
| Application: | Mix And Pump Concrete | After-sales Service: | Online Video Support |
| High Light: | KBT Concrete Mixer Pump,150mm Concrete Mixer Pump,high automatic degree Concrete Mixer Pump |
||
1. remote control with high automatic degree and easy operation, saving labor cost.
3. independent mixing system with even mixing performance and high working efficiency.
| Items | Unit | Parameters | |||||
| KBT2506/JZM450 | KBT2506/JZM350 | KBT2006/JZM300 | KBT20/JZC350 | KBT0804/JZC200 | |||
| Capacity | m3/h | 25(18) | 25(18) | 20(13) | 20(15) | 8(6) | |
| Max. aggregate size | mm | 40 | 40 | 40 | 40 | 30 | |
| Delivery pipe | mm | DN125 | DN125 | DN125 | DN125 | DN125 | |
| Max. dist | horizontally | m | 200 | 200 | 150 | 150 | 100 |
| vertically | m | 80(60) | 80(60) | 60(40) | 60(40) | 30 | |
| Mixer type | JZM450 | JZM350 | JZM300 | JZC350 | JZC200 | ||
| Charge hopper | L | 720 | 560 | 500 | 560 | 300 | |
| Discharge hopper | L | 450 | 350 | 300 | 350 | 200 | |
| Diameter of drum | mm | 1550 | 1440 | 1260 | 1440 | 1000 | |
| Output pressure | Mpa | 6-8 | 6-8 | 5-8 | 5-8 | 3-5 | |
KBT Concrete Mixer Pump Application:
1. pump plain concrete and fiber concrete in engineering construction.
3. pump heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
4. pump refractory and thermal insulation material.
Company Brief Introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
