| Product Name: | KBT2506/JZM450 KEMING Mixing Concrete Pump | Max. Aggregate Size: | 40mm |
|---|---|---|---|
| Conveying Pipe ID.: | 125mm | After-sales Service: | Online Technical Support |
| High Light: | KEMING Small Mixing Concrete Pump,125mm Small Concrete Pump,40mm Small Concrete Pump |
||
1. pump heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. pump plain concrete and fiber concrete in engineering construction.
4. pump refractory and thermal insulation material.
| Items | Unit | Parameters | |||||
| KBT2506/JZM450 | KBT2506/JZM350 | KBT2006/JZM300 | KBT20/JZC350 | KBT0804/JZC200 | |||
| Capacity | m3/h | 25(18) | 25(18) | 20(13) | 20(15) | 8(6) | |
| Max. aggregate size | mm | 40 | 40 | 40 | 40 | 30 | |
| Delivery pipe | mm | DN125 | DN125 | DN125 | DN125 | DN125 | |
| Max. dist | horizontally | m | 200 | 200 | 150 | 150 | 100 |
| vertically | m | 80(60) | 80(60) | 60(40) | 60(40) | 30 | |
| Mixer type | JZM450 | JZM350 | JZM300 | JZC350 | JZC200 | ||
| Charge hopper | L | 720 | 560 | 500 | 560 | 300 | |
| Discharge hopper | L | 450 | 350 | 300 | 350 | 200 | |
| Diameter of drum | mm | 1550 | 1440 | 1260 | 1440 | 1000 | |
| Output pressure | Mpa | 6-8 | 6-8 | 5-8 | 5-8 | 3-5 | |

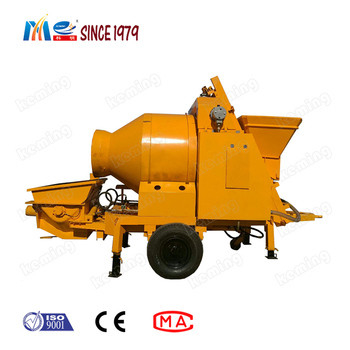

KBT2506/JZM450 KEMING Mixing Concrete Pump Application:
1. pump heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. pump plain concrete and fiber concrete in engineering construction.
4. pump refractory and thermal insulation material.
FAQ
---Concrete Pump, Cement Pump, Mortar Pump, Mud Pump
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
