Product Details:
Payment & Shipping Terms:
|

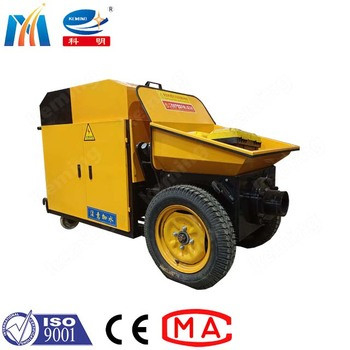

| Product: | KMB Series Small Concrete Pump | Charging Hopper Height: | 1100mm |
|---|---|---|---|
| Keyword: | Portable Concrete Pump | After-sales Service: | Online Video Support |
| High Light: | KMB Series Concrete Pump,1100mm small Concrete Pump |
||
1. pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
2. grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. Electric concrete pump can convey fine aggregate concrete and mortar for high buildings.
| Items | Unit | Parameters | ||||||
| KMB-50 | KMB-40 | KMB-30 | KMB-20 | KMB-10 | KMB-8 | |||
| Capacity | m3/h | 50(30-34) | 40(25-30) | 30(20-25) | 20(15) | 10(8) | 8(6) | |
| Max. aggregate size | mm | 40 | 30 | 20 | 20 | 25 | 15 | |
| Delivery pipe | mm | DN150/DN125 | DN125/DN100 | DN125/DN100 | DN125/DN100 | DN100/DN80 | DN80 | |
| Max. dist. | horizontally | m | 300 | 300 | 300 | 200 | 150 | 50 |
| vertically | m | 100/80 | 100/80 | 80/60 | 40 | 60 | 20 | |
| Diesel engine | kw | 84 | 56 | 44 | 40 | 40 | NONE | |
| Main oil pump | 140 double | 140/112 double | 112/80 double | 80 | 50 | 40 | ||
| Cylinder diameter | 200 | 160/180 | 140 | 120 | 140 | 120 | ||
| Motor power | kw | 55 | 45 | 37 | 22 | 22 | 15/11 | |
| Output pressure | Mpa | 8-13 | 8-13 | 6-8 | 5-8 | 5-8 | 3-5 | |
KMB Series Small Concrete Pump Application:
1. pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
2. grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. Electric concrete pump can convey fine aggregate concrete and mortar for high buildings.
FAQ
---Concrete Pump, Cement Pump, Mortar Pump, Mud Pump
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
