Convenient Operation Concrete Shotcrete Machine 600mm For Culvert Construction

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

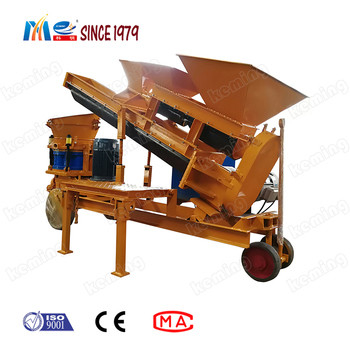

Convenient Operation Concrete Shotcrete Machine 600mm For Culvert Construction

Convenient Operation Concrete Shotcrete Machine 600mm For Culvert Construction
Convenient Operation Concrete Shotcrete Machine 600mm For Culvert Construction
video play

Large Image :  Convenient Operation Concrete Shotcrete Machine 600mm For Culvert Construction

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: KEMING Shotcrete Machine Set with Feeder
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: KEMING Shotcrete Machine Set With Feeder Application: Concrete Spraying Machine
Drive Mode: Anti-explosion Motor After Warranty Service: Online Video Support
High Light:

Convenient Operation Concrete Shotcrete Machine

,

600mm Concrete Shotcrete Machine

,

Anti explosion motor Concrete Shotcrete Machine

Convenient Operation KEMING Shotcrete Machine Set with Feeder for Culvert Construction

KEMING Shotcrete Machine Set with Feeder Information:

1. KEMING Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.

2. KEMING Shotcrete Machine Set has fewer dusts, reliable performance, long conveying distance.

3. KEMING Shotcrete Machine Set includes concrete spraying machine, grout making machine, delivery pump and auxiliary piping system.

KEMING Shotcrete Machine Set with Feeder Technical Parameters:

Items

Unit

Technical parameters

Model



JPS7I-L Shotcrete Machine

Capacity

m3/h

5~7

Conveying dist.

m

70/20

Suitable water and cement ratio



cement/gravel=1:3-5

Aggregate size max.

mm

≤20

Conveying pipe ID.

mm

φ50

Operating pressure

MPa

0.2~0.4

Air consumption

m3/min

7-8

Material feeding height

m

1.2

Motor power

kw

5.5(feeder)/7.5(main motor)

Voltage

V

380/660 or 660/1140

Machine gauge

mm

600(900)

Dimensions (Length×width×height)

mm

2930×1152×1620

Total weight

kg

1250


KEMING Shotcrete Machine Set with Feeder Application:

1. KEMING Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.

2. KEMING Shotcrete Machine Set has fewer dusts, reliable performance, long conveying distance.

3. KEMING Shotcrete Machine Set includes concrete spraying machine, grout making machine, delivery pump and auxiliary piping system.

Convenient Operation Concrete Shotcrete Machine 600mm For Culvert Construction 0



Company Information:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
