Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsConcrete Shotcrete Machine

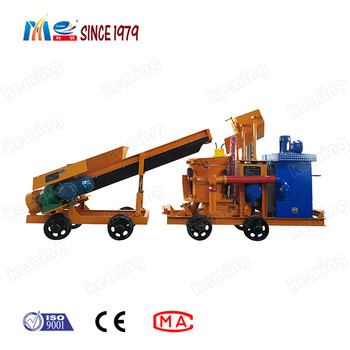

Electric Parts Shotcrete Machine Explosion Proof With Mixer For Coal Mine Use

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Electric Parts Shotcrete Machine Explosion Proof With Mixer For Coal Mine Use

Electric Parts Shotcrete Machine Explosion Proof With Mixer For Coal Mine Use
Electric Parts Shotcrete Machine Explosion Proof With Mixer For Coal Mine Use
video play

Large Image :  Electric Parts Shotcrete Machine Explosion Proof With Mixer For Coal Mine Use

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: Shotcrete Machine with Feeder and Mixer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: Shotcrete Machine With Feeder And Mixer Dust Around The Machine: ≤10mg/m3
Dedust Rate: More Than 90% After Warranty Service: Online Video Support
High Light:

Explosion Proof Shotcrete Machine

,

Shotcrete Machine With Mixer

,

Coal Mine Use Shotcrete Machine

Explosion-proof Electric Parts Shotcrete Machine with Feeder and Mixer for Coal Mine Use

Shotcrete Machine with Feeder and Mixer Information:

Keming shotcrete machine with feeder and mixer is composed of the feeding screw system, rotor assembly, air system, spraying system, electric control box, etc..

Shotcrete Machine with Feeder and Mixer Technical Parameters:

Items

Unit

Technical parameters

Model



JPS7I-L Shotcrete Machine

Capacity

m3/h

5~7

Conveying dist.

m

70/20

Suitable water and cement ratio



cement/gravel=1:3-5

Aggregate size max.

mm

≤20

Conveying pipe ID.

mm

φ50

Operating pressure

MPa

0.2~0.4

Air consumption

m3/min

7-8

Material feeding height

m

1.2

Motor power

kw

5.5(feeder)/7.5(main motor)

Voltage

V

380/660 or 660/1140

Machine gauge

mm

600(900)

Dimensions (Length×width×height)

mm

2930×1152×1620

Total weight

kg

1250


Shotcrete Machine with Feeder and Mixer Application:

1.JPS7I-L Self-loading Shotcrete Machine can spray half wet or wet concrete.

2. JPS7I-L Self-loading Shotcrete Machine is widely used in coal mine, tunnels, culverts, subway, underground engineering and other narrow space.

Electric Parts Shotcrete Machine Explosion Proof With Mixer For Coal Mine Use 0



Company Business Scope:

As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
