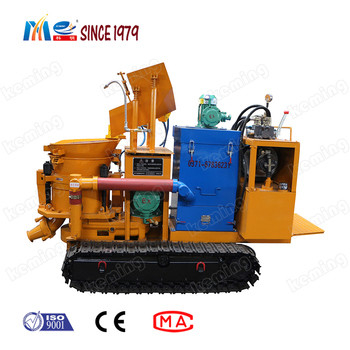

Remote Conveying Gunite Machine Used For Tunnel Mining Hydraulic

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Remote Conveying Gunite Machine Used For Tunnel Mining Hydraulic

Remote Conveying Gunite Machine Used For Tunnel Mining Hydraulic
Remote Conveying Gunite Machine Used For Tunnel Mining Hydraulic
video play

Large Image :  Remote Conveying Gunite Machine Used For Tunnel Mining Hydraulic

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: PS7IL-J Remote Conveying Gunite Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: PS7IL-J Remote Conveying Gunite Machine Braking Method: Hydraulic
Keywords: Remote Conveying Gunite Machine After Warranty Service: Online Video Support
High Light:

Remote Conveying Shotcrete Machine

,

Hydraulic Conveying Shotcrete Machine

,

Conveying Gunite Machine For Tunnel

New-developed Remote Conveying Gunite Machine used for tunnel and mining

PS7IL-J Remote Conveying Gunite Machine Information:

1. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers

2. The friction plate and rotating liner are automatically lubricated.

3. The friction plate is pressed hydraulically.

PS7IL-J Remote Conveying Gunite Machine Technical Parameters:

raying part

Capacity

m3/h

2~7

Delivery distance

m

>300

Max. aggregate size

mm

≤20

Delivery pipe ID.

mm

φ51

Air consumption

m3/min

≤8

Rotor speed

r/min

11

Dedusting part

Capacity

m³/h

800

Pressure

Pa

2600

Walking mechanism

Way of walking

Crawler



Walking speed

km/h

≤1.5

Gradeability



≤15

Braking method



Hydraulic

Hydraulic system

Motor Power

kw

18.5

Fuel tank capacity

L

200

Cooling method



Air cooling


PS7IL-J Remote Conveying Gunite Machine Application:

1. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the physical and mental health of the operators.

2. The hydraulically driven crawler chassis travels automatically, which is convenient and fast to move.

3. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

4. According to the on-site wind pressure and air volume, the spray volume is steplessly adjusted.



Remote Conveying Gunite Machine Used For Tunnel Mining Hydraulic 0



FAQ

1. Q: Which shotcrete machine should we choose?

A: To recommend the most suitable model, please tell us:



2. Q: Can we have customized model?

A: Yes. Customized production and OEM production are available according to your actual requirements.



3.Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
