Product Details:
Payment & Shipping Terms:
|

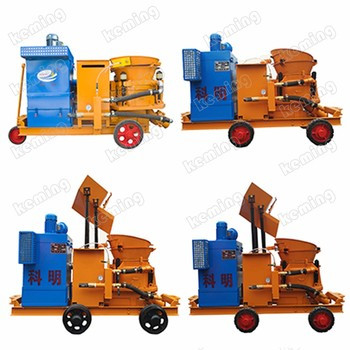

Product: | KCP-6 KCPZ Dedusting Gunite Machine | Dust Around The Machine: | ≤10mg/m3 |
---|---|---|---|
Dedust Rate: | More Than 90% | After Warranty Service: | Online Video Support |
High Light: | Dry Material Dedusting Gunite Machine,6m3/h Dedusting Gunite Machine,environmental dedusting gunite machine |
1. KCPZ Model dedusting gunite machine obtains the Invention Patent and Utility Model Patent.
2. KCPZ Model dedusting gunite machine is a new environmental shotcrete machine
3. It can be applied in spraying dry, semi-wet and wet mixture.
4. The polution of KCPZ Model dedusting gunite machine is less than 90% of dust polution of traditional machine.
Capacity | 4-5m3/h | 5-6m3/h |
Delivery distance | 200m/40m(horizontal/vertical) | 100m/30m(horizontal/vertical) |
Max. aggregate size | ≤18mm | ≤20mm |
Delivery pipe ID. | 51mm | 51mm/57mm |
Air consumption | ≥7m3/min | ≥8m3/min |
Dust concentration | ≤15mg/m3 | ≤15mg/m3 |
Main motor power | 5.5kw | 7.5kw |
Auxiliary motor power | 1.1kw | 1.1kw |
Capacity of accelerator adding hopper | 25kg | 25kg |
1. KEMING dedusting gunite machine can be used for dry, semi-wet or wet concrete spray construction.
2. KCPZ dedusting gunite machine is suitable for concrete operation in narrow space.
3. It has the character of simple operation, compact structure
