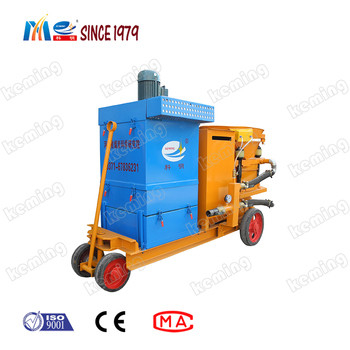

| Product: | KEMING Dedusting Gunite Machine | Model: | KCPZ-4/6 Dedusting Gunite Machine |
|---|---|---|---|
| Key Words: | KEMING Dedusting Gunite Machine | After Warranty Service: | Video Support |
| High Light: | Dry Method Spraying dedusting gunite machine,Environmental KEMING Dedusting Gunite Machine,KCPZ-4 Dedusting Gunite Machine |
||
1. KEMING dedusting gunite machine can be used for dry, half wet or wet concrete spray construction.
2. KCPZ dedusting gunite machine has compact machine structure, simple operation, suitable for concrete operation in narrow space.
1. KEMING dedusting gunite machine can be applied in spraying dry, damp and wet mixture.
2. KCPZ dedusting gunite machine obtains the Invention Patent and Utility Model Patent.
3. KEMING dedusting gunite machine is a new environmental shotcrete machine, the polution is less than 90% of dust polution of traditional machine.
| Capacity | 4-5m3/h | 5-6m3/h |
| Delivery distance | 200m/40m(horizontal/vertical) | 100m/30m(horizontal/vertical) |
| Max. aggregate size | ≤18mm | ≤20mm |
| Delivery pipe ID. | 51mm | 51mm/57mm |
| Air consumption | ≥7m3/min | ≥8m3/min |
| Dust concentration | ≤15mg/m3 | ≤15mg/m3 |
| Main motor power | 5.5kw | 7.5kw |
| Auxiliary motor power | 1.1kw | 1.1kw |
| Capacity of accelerator adding hopper | 25kg | 25kg |
FAQ
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or wet mixture
- Capacity: 3/4/5/7/9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric, air, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
