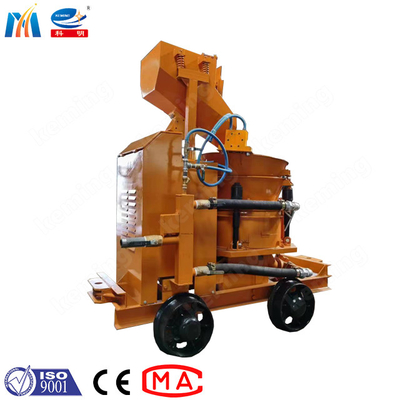

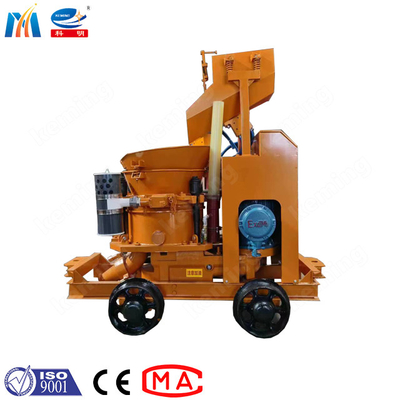

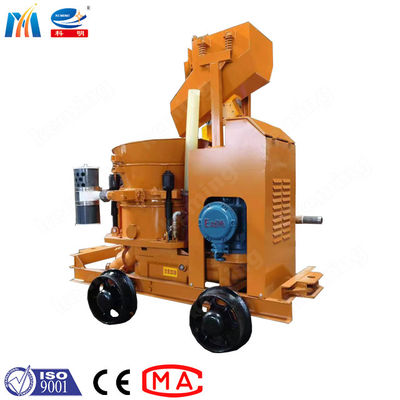

7.5 Kw Dry Concrete Aggregate Shotcrete Machine Long Conveying Distance Dust Removal

7.5 Kw Long Conveying Distance Dust Removal Dry Concrete Aggregate Shotcrete Machine

Application:
1. Collection and exhaust device of leaked air of hopper, rotor liner plates, reducing the dust leakage.
2. New dust removal technology and filter material, with good filtering effect and long service life.
3. Drawer-type dust container, convenient to clean.
4. Spraying nozzle system with multiple circular water adding device, ensuring even mixing.
5. Accelerator added by vibration, ensuring micro adjustment and proper adding ratio.

Dust removal system:
A set of dust removal system is added to the main body of the original shotcrete machine.

The dust removal system is composed of a shield, a dial device, an overflow air assembly, a lower air overflow assembly, a dust suction pipe, a dust collection chamber, and a dust collector. Guide the overflow air port, underflow air port, rotor body leakage, hopper reverse air, etc. that cause dust discharge during the operation of the jet to the air inlet channel of the dust removal device, pass through the dust suction pipe to the dust removal chamber, and filter through the dust removal net to collect the dust. In the dust collector, a dust removal system is formed to avoid environmental pollution caused by direct discharge.


Features:
1. High conveying efficiency, good stirring effect, uniform mixing of shotcrete, less rebound material, and improve the quality of shotcrete.
2. It can realize automatic proportioning and continuous feeding of cement and sand and gravel, which can effectively reduce the labor intensity of operators and improve production efficiency.
3. The dust concentration beside the machine and outside the nozzle is greatly reduced, and the harm of dust to workers' health is reduced.
4. The structure is compact, the operation is simple and convenient, and the working performance is stable.

Specification:
