Product Details:
Payment & Shipping Terms:
|

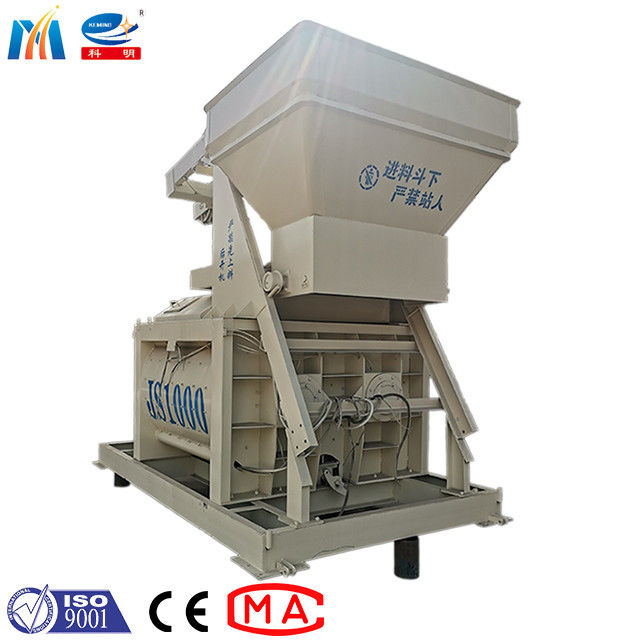

| Product: | JS Model Forced Concrete Mixer | Advantage: | Low Maintenance Cost |
|---|---|---|---|
| Capacity: | 500-2000L | After Warranty Service: | Online Service |
| High Light: | Twin Shaft Forced Concrete Mixer,2000L Forced Concrete Mixer,JS Model Forced Concrete Mixer |
||
1. It is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as roads, bridges, waterways, docks, etc.
2. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. It is a high-efficiency model and is widely used.
3. JS series concrete mixer is a twin-shaft forced mixer, which has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine.
JS Model Forced Concrete Mixer Application:
1. It is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as roads, bridges, waterways, docks, etc.
2. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. It is a high-efficiency model and is widely used.
3. JS series concrete mixer is a twin-shaft forced mixer, which has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine.
| Model | JS500 | JS750 |
| Discharging capacity L | 500 | 750 |
| Charging capacity L | 800 | 1200 |
| Productivity m3/h | <25 | <35 |
| Max aggregate size mm | <40/50 | <40/50 |
| Mixing blade | 2*7 | 2*7 |
| Rev of drum r/min | 31 | 31 |
| Stiring motor kw | 18.5 | 30 |
| Lifting motor kw | 5.5 | 7.5 |
| Water pump motor kw | 1.1 | 1.5 |
| Dimension L*B*H mm | 4461*3050*4180 | 4951*3650*6225 |
| Model | JS1000 | JS1500 | JS2000 |
| Discharginh capacity L | 1000 | 1500 | 2000 |
| Charginh capacity L | 1600 | 2400 | 3200 |
| Productivity m3/h | 50 | 75 | 100 |
| Max aggregate size mm | 80/60 | 80/60 | 80/60 |
| Mixing blade | 25.5r/min 2*7 | 25.5r/min 2*8 | 23r/min 2*9 |
| Stirring motor kw | 37 or 18.5*2 | 30*2 | 37*2 |
| Lifting motor kw | 15 | 18.5 | 22 |
| Water pump motor kw | 2.2(up)3(down) | 3(up)4(down) | 4(up)5(down) |
| Hopper lifting speed m/min | 21.9 | 23 | 26.8 |
| Dimension L*B*H mm Transp | 4640*2250*2250 | 5058*2250*2440 | 5860*2250*2735 |
| Working mm | 8765*3436*9540 | 9645*3436*9700 | 10720*3870*10726 |
| Weight | 8700 | 11130 | 15000 |
| Discharge height mm | 4000 | 4000 | 4000 |
Business Scope:
As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
