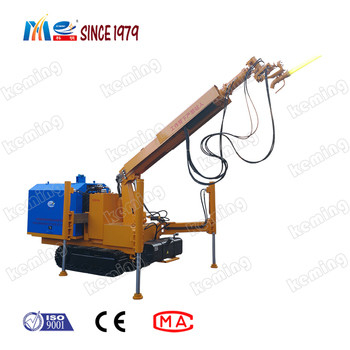

| Product: | KPC-8A KPC Model Shotcrete Robotic Machine | Keywords: | KPC Model Shotcrete Robotic Machine |
|---|---|---|---|
| Maximum Spraying Width: | 11m | Maintencance: | Online Video Support |
1. KPC Shotcrete Robotic Machine is suitable for dry, wet or wet and dry mixing.
2. It is an ideal equipment for any working space, even in narrow tunnel construction.
3. KPC Shotcrete Robotic Machine has independant hydraulic drive, 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.
1. The spraying is continuous and adjustable, high quality, high working efficiency.
2. The main oil pump adopts a variable diaplacement plunger pump, and the injection speed can be adjusted freely.
3. The water ash ratio is much easier to control and concrete coefficient is high, it can greatly improve the concrete quality and increase the concrete uniformity.
4. KPC Shotcrete Robotic Machine can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.
5. Hydraul;ic pumping method, high system reliablity, stable delivery volume. It is extensively used for concrete spraying, filling, grouting, pumping in construction projects.
| Parameter | Model | KPC-8A | KPC-6A |
| Dimensions in transport mode | 4500*1080*2200mm | 2500*900*1680mm | |
| Weight | 3000kg | 2400kg | |
| Max. length of operation | 8400mm | 7000mm | |
| Outrigger expansion width | 2500mm | 2300mm | |
| Support shotcrete capacity | 0-25m3/h | 0-10m3/h | |
| Boom parameters | Max.spraying height | 8.2m | 6.2m |
| Max. spraying width | 11m | 7m | |
| Hose ID | 51/57/64mm | 51/57/64mm | |
| Arm frame telescopic distance | 2.7m | 2.35m | |
| Boom expansion max. length | 6m | 3.5m | |
| Chassis | Max. gradient of walking | 25% | 20% |
| Ground slope | 2% | 2% | |
| Walking speed | 0.5km/h | 0.6km/h | |
| Ground distance | 390mm | 150mm | |
| Power | Hydraulic system output | 11kw | 7.5kw |
| Voltage | 380-1140v | 380-1140v |
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
