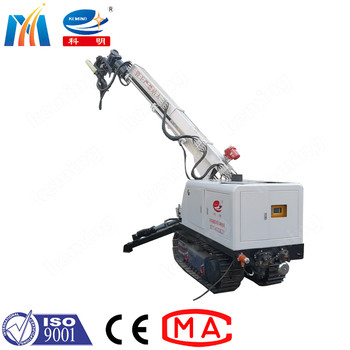

Equipped with remote controller KPC Series Shotcrete Robot used for concrete spraying

Equipped with remote controller KPC Series Shotcrete Robot used for concrete spraying
Equipped with remote controller KPC Series Shotcrete Robot used for concrete spraying
video play

Large Image :  Equipped with remote controller KPC Series Shotcrete Robot used for concrete spraying

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: KPC-6A KPC Series Shotcrete Robot
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: KPC-6A KPC Series Shotcrete Robot Control Type: Full Remote Control
COLOR: Yellow, White Or Customized Maintencance: Online Video Support

Equipped with remote controller KPC Series Shotcrete Robot used for concrete spraying

KPC-6A KPC Series Shotcrete Robot Introduction:

1. KPC-6A KPC Series Shotcrete Robot is suitable for dry, wet or wet and dry mixing.

2. It is an ideal equipment for any working space, even in narrow tunnel construction.

3. KPC-6A KPC Series Shotcrete Robot adopts explosion-proof electrical design and can be used in underground coal mine environment.

Equipped with remote controller KPC Series Shotcrete Robot used for concrete spraying 0

KPC-6A KPC Series Shotcrete Robot Application:

1. KPC-6A KPC Series Shotcrete Robot is an ideal equipment for any working space, even in narrow tunnel construction.

2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.

3. KPC-6A KPC Series Shotcrete Robot can be used for slope stability (slope stability), excavation and support, shotcrete support.



Equipped with remote controller KPC Series Shotcrete Robot used for concrete spraying 0

Shotcrete Robot Spraying Manipulator Parameters:

Parameter Model KPC-8A KPC-6A
Dimensions in transport mode 4500*1080*2200mm 2500*900*1680mm
Weight 3000kg 2400kg
Max. length of operation 8400mm 7000mm
Outrigger expansion width 2500mm 2300mm
Support shotcrete capacity 0-25m3/h 0-10m3/h
Boom parameters Max.spraying height 8.2m 6.2m
Max. spraying width 11m 7m
Hose ID 51/57/64mm 51/57/64mm
Arm frame telescopic distance 2.7m 2.35m
Boom expansion max. length 6m 3.5m
Chassis Max. gradient of walking 25% 20%
Ground slope 2% 2%
Walking speed 0.5km/h 0.6km/h
Ground distance 390mm 150mm
Power Hydraulic system output 11kw 7.5kw
Voltage 380-1140v 380-1140v



FAQ



1. Q: Which shotcrete machine should we choose?

A: To recommend the most suitable model, please tell us:

- Material: dry / damp mixture, or ready mixed wet mixture

- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h

- Delivery distance (horizontally / vertically):

- Driven type: electric motor, pneumatic motor, diesel engine



2. Q: What is the vulnerable part? How many spares should we prepare?

A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.

Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.



3. Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
