| Product: | KPC-6A KPC Shotcrete Robot Machine | Maximum Spraying Width: | 11m |
|---|---|---|---|
| Control Type: | Full Remote Control | Maintencance: | Online Video Support |
| High Light: | Shotcrete Robot Machine,Dry Wet Dump Shotcrete Robot Machine,KPC Shotcrete Robot Machine |
||

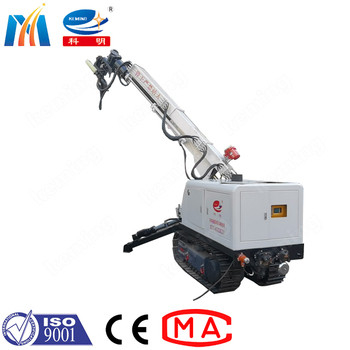

1. KEMING Shotcrete robot Machine is suitable for dry, wet or wet and dry mixing.
2. It adopts explosion-proof electrical design and can be used in underground coal mine environment.
3. KEMING Shotcrete robot Machine has independant hydraulic drive, 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.
1. KEMING Shotcrete robot Machine is an ideal equipment for any working space, even in narrow tunnel construction.
2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.
3. KEMING Shotcrete robot Machine can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.
| Parameter | Model | KPC-8A | KPC-6A |
| Dimensions in transport mode | 4500*1080*2200mm | 2500*900*1680mm | |
| Weight | 3000kg | 2400kg | |
| Max. length of operation | 8400mm | 7000mm | |
| Outrigger expansion width | 2500mm | 2300mm | |
| Support shotcrete capacity | 0-25m3/h | 0-10m3/h | |

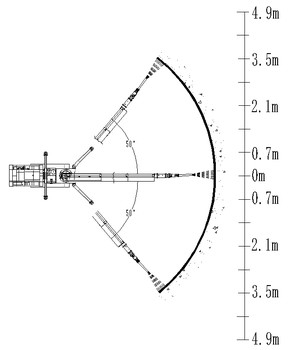

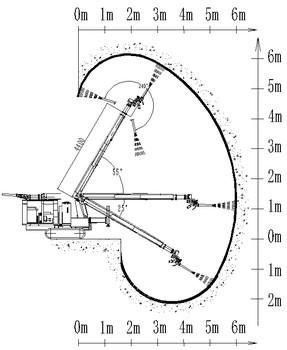

| Boom parameters | Max.spraying height | 8.2m | 6.2m |
| Max. spraying width | 11m | 7m | |
| Hose ID | 51/57/64mm | 51/57/64mm | |
| Arm frame telescopic distance | 2.7m | 2.35m | |
| Boom expansion max. length | 6m | 3.5m | |
| Chassis | Max. gradient of walking | 25% | 20% |
| Ground slope | 2% | 2% | |
| Walking speed | 0.5km/h | 0.6km/h | |
| Ground distance | 390mm | 150mm | |
| Power | Hydraulic system output | 11kw | 7.5kw |
| Voltage | 380-1140v | 380-1140v |
As a comprehensive high-tech enterprise, Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”. In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
