Product Details:
Payment & Shipping Terms:
|
| Product: | KPC Series Shotcrete Robot Machine | COLOR: | Customized |
|---|---|---|---|
| Application: | Concrete Spray Shotcrete Machine | After Warranty Service: | Online Video Support |
| High Light: | Shotcrete Robot Machine Remote Control,KPC Series Shotcrete Robot Machine,Concrete Spraying Tool Shotcrete Robot Machine |
||

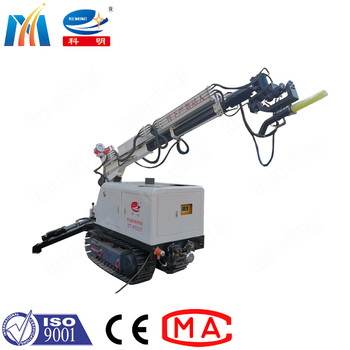

1. KEMING Shotcrete robot Machine has independant hydraulic drive, 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.
2. It adopts explosion-proof electrical design and can be used in underground coal mine environment.
3. KEMING Shotcrete robot Machine is suitable for dry, wet or wet and dry mixing.
(1) convenient maintenance
(2) advanced technology
1. KEMING Shotcrete robot Machine is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.
2. It is an ideal equipment for any working space, even in narrow tunnel construction.
3. KEMING Shotcrete robot Machine can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.
| Parameter | Model | KPC-8A | KPC-6A |
| Dimensions in transport mode | 4500*1080*2200mm | 2500*900*1680mm | |
| Weight | 3000kg | 2400kg | |
| Max. length of operation | 8400mm | 7000mm | |
| Outrigger expansion width | 2500mm | 2300mm | |
| Support shotcrete capacity | 0-25m3/h | 0-10m3/h | |
| Boom parameters | Max.spraying height | 8.2m | 6.2m |
| Max. spraying width | 11m | 7m | |
| Hose ID | 51/57/64mm | 51/57/64mm | |
| Arm frame telescopic distance | 2.7m | 2.35m | |
| Boom expansion max. length | 6m | 3.5m | |
| Chassis | Max. gradient of walking | 25% | 20% |
| Ground slope | 2% | 2% | |
| Walking speed | 0.5km/h | 0.6km/h | |
| Ground distance | 390mm | 150mm | |
| Power | Hydraulic system output | 11kw | 7.5kw |
| Voltage | 380-1140v | 380-1140v |
As a comprehensive high-tech enterprise, Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
