| Weight: | 600kg | Condition: | New |
|---|---|---|---|
| Power Type: | Electrical Engine | Warranty: | 12 Month |
| After-sales Service Provided: | Instruction Book, Online Support | Power(w): | 15kw |
| Color: | Customized | Name: | Concrete Pump |
| High Light: | Secondary Pumpcrete Machine,Diesel Engine Pumpcrete Machine,conveying pipes Pumpcrete Machine |
||

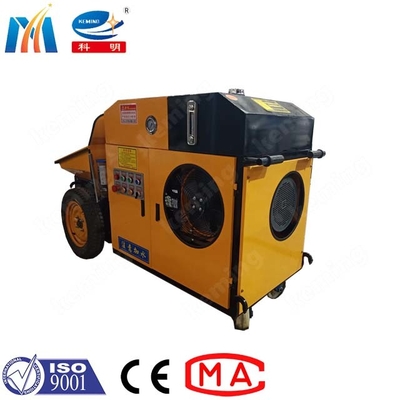

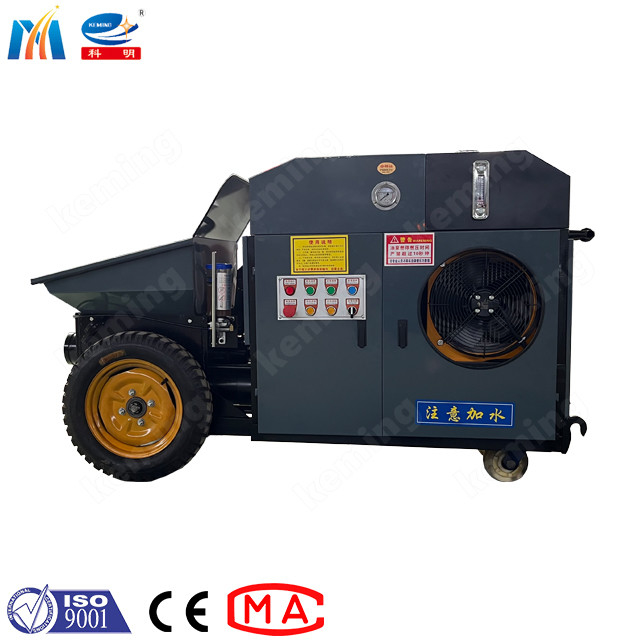

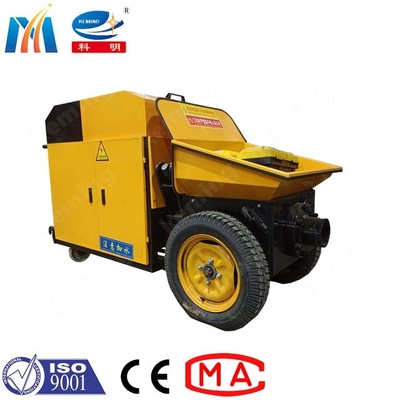

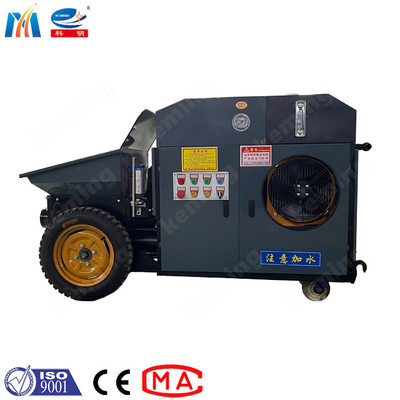

30m Conveying Pipes Secondary Pumpcrete Machine Concrete Pumping Diesel Engine Concrete Conveying
Application:
Concrete pumping machine is a machine that uses pressure to continuously transport concrete along pipelines. Composed of pump body and delivery pipe.
According to the structure, it is divided into piston type, extrusion type and hydraulic diaphragm type.
As the concrete pumping machine has discharge pressure when pumping, so the pumping distance can reach 100m.
And the concrete pumping machine also have less spare parts, the main spare parts are the S tube, could change a new one after one year use.
We provide 30m conveying pipes for free to spport our first cooperate. the aggesgate size of the concrete could below 20mm, which more sutiable for smaller concrete conveying construction.
Features:
1. Optimal design of the hopper. low resistance parabolic S tube. suction excellent performance;
2. Configuration with a large row of imported most open pump and hydraulic components imported.
3. With Relay-based integrated electronic control system, simple and reliable, more user-friendly design; surfacing Shaped glasses plate, cutting ring is not only high hardness, and repair. use and low cost.
4. Can also choose the high life of carbide cutting ring plate glasses. Well-designed open.
5. Double-circuit hydraulic system, for the small impact: can lift guide rollers.
Specification:
| Items | Unit | Parameter | |||||||
| KMB-50 | KMB-40 | KMB-30 | KMB-20 | KMB-10 | KMB-8 | ||||
| Capacity | m3/h | 50(30-34) | 40_25-30) | 30(20-25) | 20(15) | 10(8) | 8(6) | ||
| Max. aggregate size | mm | 40 | 30 | 20 | 20 | 25 | 15 | ||
| Delivery pipe | mm | DN150/DN125 | DN125/DN100 | DN125/DN100 | DN125/DN100 | DN100/DN80 | DN80 | ||
| Max. dist | horizontal | m | 300 | 300 | 300 | 200 | 150 | 50 | |
| vertical | m | 100/80 | 100/80 | 80/60 | 40 | 60 | 20 | ||
| Diesel engine | KW | 84 | 56 | 44 | 40 | 40 | none | ||
| Main oil pump | 140 double | 140/112 double | 112/80 double | 80 | 50 | 40 | |||
| Cylinder diameter | 200 | 180 | 140 | 120 | 140 | 120 | |||
| Motor power | KW | 55 | 45 | 37 | 22 | 22 | 15/11 | ||
| OutPut pressure | Mpa | 8-13 | 8-13 | 6-8 | 5-8 | 5-8 | 3-5 | ||
Certification:
In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
