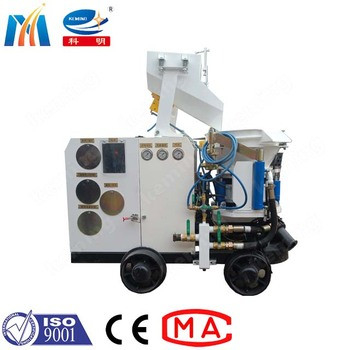

Pneumatic Concrete Spraying Shotcrete Machine 240m Small Remote With Dust Cover

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Pneumatic Concrete Spraying Shotcrete Machine 240m Small Remote With Dust Cover

Pneumatic Concrete Spraying Shotcrete Machine 240m Small Remote With Dust Cover
Pneumatic Concrete Spraying Shotcrete Machine 240m Small Remote With Dust Cover
video play

Large Image :  Pneumatic Concrete Spraying Shotcrete Machine 240m Small Remote With Dust Cover

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: Small Remote Concrete Spraying Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: Small Remote Concrete Spraying Machine Capacity: 2-6m3/h
Max. Delivery Distance: 240m After-sales Service Provided: Video Technical Support
High Light:

Pneumatic Concrete Spraying Machine

,

240m Concrete Spraying Machine

,

Concrete Shotcrete Machine With Dust Cover

Pneumatic conveying machine Small Remote Concrete Spraying Machine with dust cover

Small Remote Concrete Spraying Machine Introduction:

1. Mining small long-distance concrete sprayer is a special equipment for pneumatic conveying of concrete in coal mine construction.

2. The machine has a dust cover, which can effectively prevent dust from being sprayed; it has a sealing lubrication system, a hydraulic automatic pressing system, and an automatic adding system for quick-setting agents, which can improve the service life of seals and reduce dust.

3. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.

4. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically.





Small Remote Concrete Spraying Machine Features:



1. Mining small long-distance concrete sprayer is a special equipment for pneumatic conveying of concrete in coal mine construction.

2. The machine has a dust cover, which can effectively prevent dust from being sprayed; it has a sealing lubrication system, a hydraulic automatic pressing system, and an automatic adding system for quick-setting agents, which can improve the service life of seals and reduce dust.

3. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.

4. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically.

Small Remote Concrete Spraying Machine Technical Parameters:

Basic parameters Unit Parameters
Max. capacity m3/h 2-6
Max. delivery distance m 240
Max aggregate size mm 15
Hose ID mm 51/57
Pressure Mpa ≥0.6
Air consumption m3/min 5-15
Feeding height m 1.15
REV. of rotor r/min 11
Power kw 7.5
Voltage V 380/660V or 660/1140V
Dimension(L*W*H)

mm

1800×784×1712
Weight kg 1110



Pneumatic Concrete Spraying Shotcrete Machine 240m Small Remote With Dust Cover 0
