Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsConcrete Shotcrete Machine

Control KEMING Remote Conveying Gunite Machine 2200kg Full Hydraulic

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

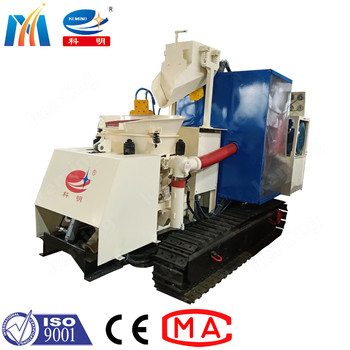

Control KEMING Remote Conveying Gunite Machine 2200kg Full Hydraulic

Control KEMING Remote Conveying Gunite Machine 2200kg Full Hydraulic

Large Image :  Control KEMING Remote Conveying Gunite Machine 2200kg Full Hydraulic

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: PS7IL-J KEMING Remote Conveying Gunite Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: PS7IL-J KEMING Remote Conveying Gunite Machine Dedusting Part Capacity: 800m³/h
Weight: 2200kg After-sales Service Provided: Video Technical Support
Highlight:

Remote Conveying Gunite Shotcrete Machine

,

2200kg Conveying Gunite Machine

,

Full Hydraulic Conveying Gunite Machine

Full hydraulic control KEMING Remote Conveying Gunite Machine saving labor workers

PS7IL-J KEMING Remote Conveying Gunite Machine Introduction:

1. The friction plate and rotating liner are automatically lubricated.

2. High degree of automation, walking, spraying, dust removal and automatioc turning of the hopper base are realized by a set of hydraulic system, which is easy to operate nearby.

3. The friction plate is automatically pressed hydraulically.





PS7IL-J KEMING Remote Conveying Gunite Machine Features:



1. The hydraulically driven crawler chassis travels automatically, which is convenient and fast to move.

2. According to the on-site wind pressure and air volume, the spray volume is steplessly adjusted; the key components are optimized and designed to achieve long-distance spraying operations.

3. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

PS7IL-J KEMING Remote Conveying Gunite Machine Technical Parameters:

raying part

Capacity

m3/h

2~7

Delivery distance

m

>300

Max. aggregate size

mm

≤20

Delivery pipe ID.

mm

φ51

Air consumption

m3/min

≤8

Rotor speed

r/min

11

Dedusting part

Capacity

m³/h

800

Pressure

Pa

2600

Walking mechanism

Way of walking

Crawler



Walking speed

km/h

≤1.5

Gradeability



≤15

Braking method



Hydraulic

Hydraulic system

Motor Power

kw

18.5

Fuel tank capacity

L

200

Cooling method



Air cooling


Control KEMING Remote Conveying Gunite Machine 2200kg Full Hydraulic 0
