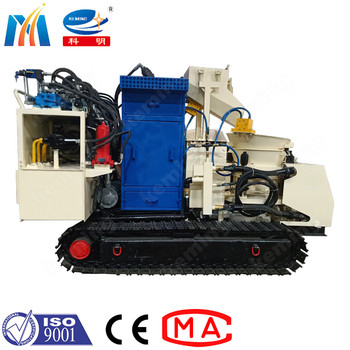

Remote Concrete Spraying Gunite Machine With Self Movement

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Remote Concrete Spraying Gunite Machine With Self Movement

Remote Concrete Spraying Gunite Machine With Self Movement
Remote Concrete Spraying Gunite Machine With Self Movement
video play

Large Image :  Remote Concrete Spraying Gunite Machine With Self Movement

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: Remote Conveying Gunite Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: Remote Conveying Gunite Machine Braking Method: Hydraulic
Way Of Walking: Crawler After-sales Service Provided: Video Technical Support
High Light:

Concrete Spraying Gunite Machine

,

Crawler Concrete Gunite Machine

,

Conveying Gunite Machine With Self Movement

New type concrete spraying machine Remote Conveying Gunite Machine with self-movement

Remote Conveying Gunite Machine Introduction:

1. High degree of automation, walking, spraying, dust removal and automatioc turning of the hopper base are realized by a set of hydraulic system, which is easy to operate nearby.

2. The whole set of equipment has only one motor, which greatly shortens the wiring and auxiliary time of the motor before and after the spraying operation.

3. The friction plate is automatically pressed hydraulically.

4. The friction plate and rotating liner are automatically lubricated.



Remote Conveying Gunite Machine Features:



1. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers.

2. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

3. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the pgysical and mental health of the operators.

4. According to the on-site wind pressure and air volume, the spray volume is steplessly adjusted; the key components are optimized and designed to achieve long-distance spraying operations.

5. The hydraulically driven crawler chassis travels automatically, which is convenient and fast to move.

Remote Conveying Gunite Machine Technical Parameters:

Spraying part

Capacity

m3/h

2~7

Delivery distance

m

>300

Max. aggregate size

mm

≤20

Delivery pipe ID.

mm

φ51

Air consumption

m3/min

≤8

Rotor speed

r/min

11

Dedusting part

Capacity

m³/h

800

Pressure

Pa

2600

Walking mechanism

Way of walking

Crawler



Walking speed

km/h

≤1.5

Gradeability



≤15

Braking method



Hydraulic

Hydraulic system

Motor Power

kw

18.5

Fuel tank capacity

L

200

Cooling method



Air cooling




Remote Concrete Spraying Gunite Machine With Self Movement 0
