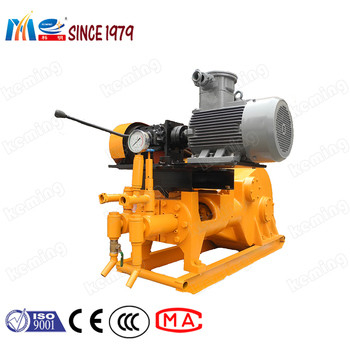

| Product: | 2TGZ-90/140 Mechanical Grout Pump Machine Of KEMING | Weight: | 1050-1070kg |
|---|---|---|---|
| Suction Hose ID: | 75mm | After-sales Service: | Online Technical Support |
| High Light: | Threshold Mechanical Grout Pump,Mechanical Grout Pump for Mining Well,Four Speed Mechanical Grout Pump |
||
Mechanical Grout Pump Machine of KEMING has four gear shift for speed optional in every model.
1. Compact structure, high pressure, stable performance, for speed threshold, adjustable grout volume and grout pressure.Small size, light weight, convenient movement.
2.The pump can convey cement grout, slurry, oil, water glass, water etc.
3. Convenient operation and maintenance.
1. KEMING Mechanical Grout Pump Machine is widely used to grout for water blocking in tunnel, mining well, rock gangway or concrete sidewall.
2. For reinforcement of tunnel cracks, crushed or scattered rocks; anchor and injection..
3. For back-fill grout to prevent groud depression and landslide and correct skew buildings.
| Model | Rev. | Suction volume L/min | Max. grouting pressure Mpa | Motor KW |
| 2TGZ-60/210 | 1 gear | 16 | 21 | 7.5 |
| 2 gear | 19 | 18 | ||
| 3 gear | 36 | 9.5 | ||
| 4 gear | 60 | 6 | ||
| 2TGZ-90/140 | 1 gear | 24 | 14 | 7.5 |
| 2 gear | 29 | 12 | ||
| 3 gear | 54 | 6 | ||
| 4 gear | 90 | 4 | ||
| 2TGZ-120/105 | 1 gear | 32 | 10.5 | 11 |
| 2 gear | 38 | 9 | ||
| 3 gear | 72 | 5 | ||
| 4 gear | 120 | 3 |
