Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cement Concrete Foaming Machine | Max. Aggregate Size: | 15 Mm |
|---|---|---|---|
| Hose Pump ID.: | 75 Mm | Max. Delivery Distance: | 200/40 M |
| Keyword: | Cement Concrete Foaming Machine | After-sales Service Provided: | Online Support |
| High Light: | Insulating Layer Foam Concrete Pump,Foam Concrete Pump To Make Bricks,Cement Foam Concrete Pump Machine |
||

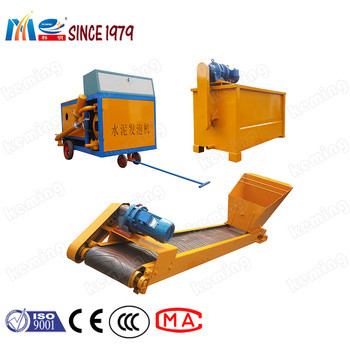

1. Cement Concrete Foaming Machine combines feeding machine, water adding device, mixing system, foaming system, delivery system together. It is convenient to operate, automatic cement feeding, automatic mixing of cement slurry, automatic foaming of foaming agent, automatic delivery of foaming concrete.
2. The machine adopts high pressure foaming technology with good foaming performance,even,high quality,unbreakable,accurate(foaming amount can be precisely controlled within mg).
3. Delivery system adopts the most advanced pumping system of hose pump, with simple operation, low fault rate, less wearable parts, convenient maintenance,and low cost.
4. The machine saves production costs and improves economical returns.Compared with similar products, the machine can save 50~100kg cement per cubic meter product.
1. Cement Concrete Foaming Machine is widely used to produce lightweight cement, thermal insulation materials, heat preservation materials, and water proof materials etc.
2. Take cement and coal ash as raw material to make foam concrete.
3. Insulating layer, bedding course, floor heating, filling projects of foam concrete roofing.
4. Other products of foam concrete.
|
Model |
Capacity m3/h |
Pressure Mpa |
Power KW |
Delivery distance m |
| KFP50 | 1-8 | 3,1.5 |
5.5 |
100/50 |
| KFP70 | 1-10 | 3,1.5 |
7.5 |
200/70 |
| KFP100 | 1-15 | 3,1.5 |
7.5 |
300/100 |
| KFP-65-20A | 10-12 | 1.5 |
7.5 |
100/20 |
| KFP-65-40A | 10-12 | 1.5,3 |
7.5 |
200/40 |
| KFP-76-20A | 18-20 | 1.5 |
11 |
100/20 |
| KFP-76-40A | 18-20 | 1.5,4 |
11 |
200/40 |
| KFP120 | 1-25 | 3,1.5 |
11 |
300/120 |
| KFP150 | 1-30 | 4,2 |
11 |
300/120 |
| KFP-90-20A | 38-40 | 1.5 |
15 |
100/20 |
| KFP-90-40A | 38-40 | 1.5,5 |
15 |
200/40 |
| KFP180 | 1-40 | 5,2 |
15 |
100/20 |
| KFP200 | 1-50 | 5,2.5 |
15 |
100/20 |
