Home ProductsSmall Concrete Pump

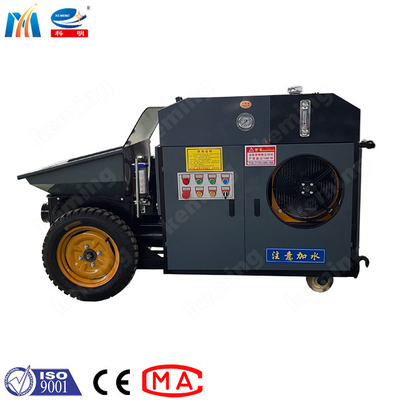

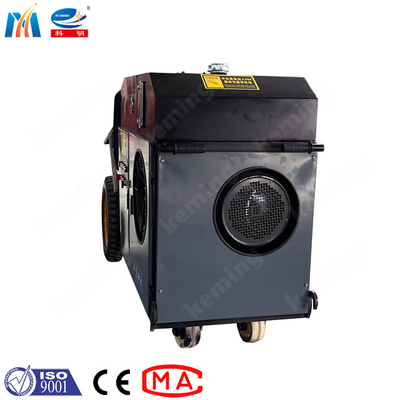

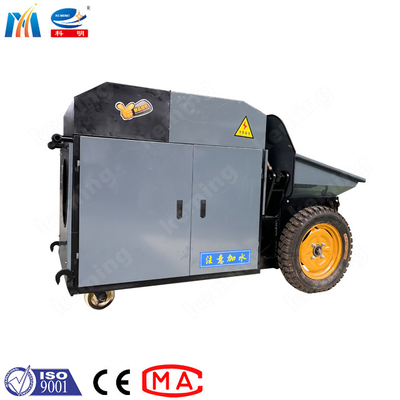

15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc

15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc
15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc

Large Image :  15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KMB-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 3000-4500USD per set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Weight: 650kg Condition: New
Power Type: Electric Engine Warranty: 12 Month
After-sales Service Provided: Instruction Book, Online Support Power(w): 15 Kw
Color: Customized Name: KMB-8 Concrete Pump
High Light:

Concrete pumping machine with suction performanc

,

15kw Tube Small Concrete Pump

,

Small Concrete Pump for Wet Aggregate Conveying

15kw S Valve Tube Concrete Pumps 50 M Wet Aggregate Conveying Machine

Application:

Concrete pumping machine is a machine that uses pressure to continuously transport concrete along pipelines. Composed of pump body and delivery pipe. For this type, the price include 20m steel tube and 10m rubber tube for conveying concrete.

For the KMB-8 concreet pump price itself include 20m steel tube and 10m rubber tube.For concrete pump, there are electrical and diesel engines can be choosed. But for KMB-8, there are only electrical engine on kind driven engine.The horizontal conveying distance is 50m, vertical conveying
The pump body can also installed on the chassis of the car, and then equipped with a retractable or flexural spreader boom to form a pump truck.



1. Pumping concrete

When the mortar level in the hopper is still above the axis of the S pipe, add concrete and start normal pumping. Note that the added concrete should meet the pumping requirements. Clean up large aggregates in time to prevent large-diameter aggregates from entering the hopper to avoid blockage.

2. Cleaning the pipeline and the pump

When cleaning the pipeline, you should master it properly, so that the residual concrete in the pipeline can be used on the construction site as much as possible. This machine can use the pump to directly pump water to clean the pipeline


15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 0
Features:
1. Optimal design of the hopper. low resistance parabolic S tube. suction excellent performance;
2. Configuration with a large row of imported most open pump and hydraulic components imported.
3. With Relay-based integrated electronic control system, simple and reliable, more user-friendly design; surfacing Shaped glasses plate, cutting ring is not only high hardness, and repair. use and low cost.
4. Can also choose the high life of carbide cutting ring plate glasses. Well-designed open.
5. Double-circuit hydraulic system, for the small impact: can lift guide rollers.


Specification:

Max. theoretical delivery 6m³/h
Working form S tube valve
Feeding height 0.7m
Aggregate size 0.5—2cm
Hydraulic system form Remote control,electronic control form
Max. pressure:working pressure 18Mpa:10Mpa
Hydraulic oil cooling Air cooling
Vertical conveying distance 20m
Horizontal conveying distance 50m
Conveying tube diameter 80mm-100mm
Motor power 15kw
Whole machine weight 650kg
Dimension (LxWxH) 1500x700x1500mm




Related machines :


Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Wet shotcrete machine:
15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 1
Mortar plastering machine:
15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 2
Certification:


In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 315kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 415kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 5
Why choose us:


15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 6
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 715kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 8
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 9
Exhibition:


Bauma Shanghai 2018
15kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 1015kw Tube Small Concrete Pump For Wet Aggregate Conveying With Suction Performanc 11
FAQ:


1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.

If there is any other questions abou tour machines and price, pls feel free to contact us !
