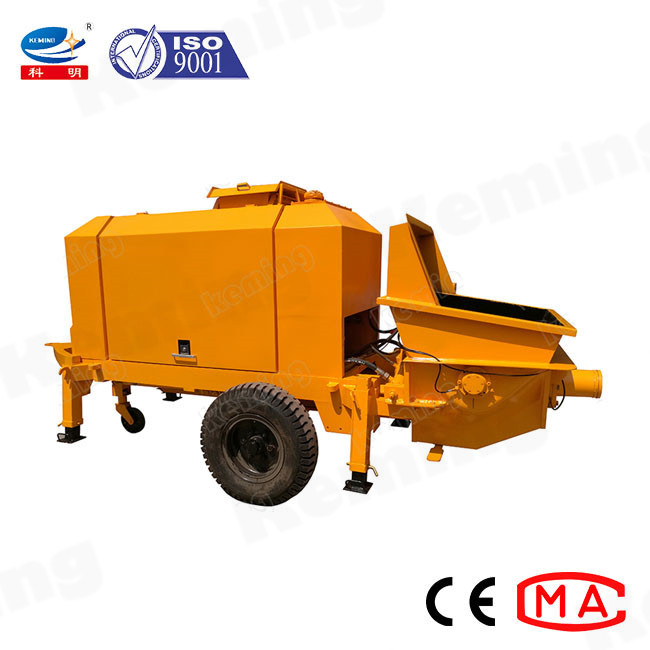

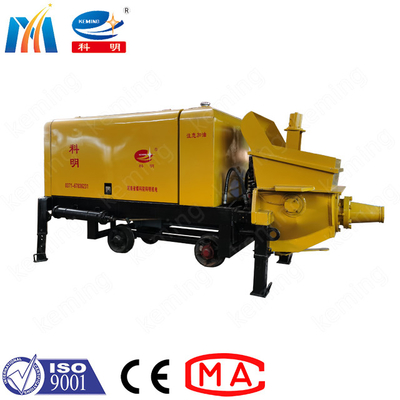

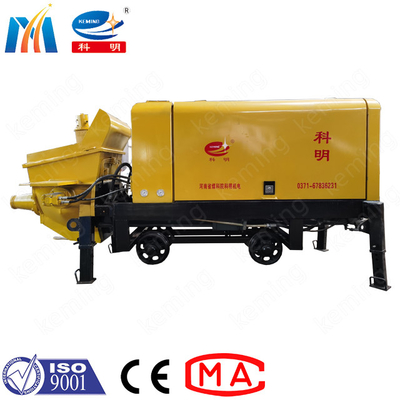

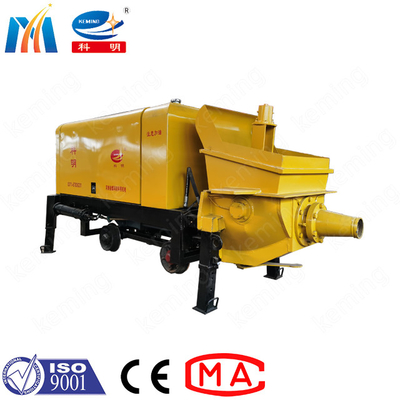

Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite

Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite
Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite
video play

Large Image :  Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KMB series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 4000-6500USD per set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: T/T, Western Union, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Weight: Different Model Different Weight Condition: New
Power Type: Diesel Engine Warranty: 12 Month
After-sales Service Provided: Instruction Book Power(w): 15-55kw
Color: Customized Name: Concrete Pump
High Light:

Diesel Engine Small Concrete Pump

,

Discharge Pressure Concrete Pump

,

55kw Concrete Pumping

Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite



Application:



Concrete pumping machine is a machine that uses pressure to continuously transport concrete along pipelines. Composed of pump body and delivery pipe.

According to the structure, it is divided into piston type, extrusion type and hydraulic diaphragm type.

The pump body is installed on the chassis of the car, and then equipped with a retractable or flexural spreader boom to form a pump truck.

As the concrete pumping machine has discharge pressure when pumping, so the pumping distance can reach 100m.

And the concrete pumping machine also have less spare parts, the main spare parts are the S tube, could change a new one after one year use.



Features:



1. Optimal design of the hopper. low resistance parabolic S tube. suction excellent performance;
2. Configuration with a large row of imported most open pump and hydraulic components imported.
3. With Relay-based integrated electronic control system, simple and reliable, more user-friendly design; surfacing Shaped glasses plate, cutting ring is not only high hardness, and repair. use and low cost.
4. Can also choose the high life of carbide cutting ring plate glasses. Well-designed open.
5. Double-circuit hydraulic system, for the small impact: can lift guide rollers.



Specification:

Items Unit Parameter
KMB-50 KMB-40 KMB-30 KMB-20 KMB-10 KMB-8
Capacity m3/h 50(30-34) 40_25-30) 30(20-25) 20(15) 10(8) 8(6)
Max. aggregate size mm 40 30 20 20 25 15
Delivery pipe mm DN150/DN125 DN125/DN100 DN125/DN100 DN125/DN100 DN100/DN80 DN80
Max. dist horizontal m 300 300 300 200 150 50
vertical m 100/80 100/80 80/60 40 60 20
Diesel engine KW 84 56 44 40 40 none
Main oil pump   140 double 140/112 double 112/80 double 80 50 40
Cylinder diameter   200 180 140 120 140 120
Motor power KW 55 45 37 22 22 15/11
OutPut pressure Mpa 8-13 8-13 6-8 5-8 5-8 3-5

Certification:

In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 0Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 1Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 2

Why choose us:

Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 3

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 4Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 5

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.



Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 6Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 7

Exhibition:

Bauma Shanghai 2018

Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 8Discharge Pressure 100m Concrete Pumping Diesel Engine Wet Concrete Gunite 9

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
