Electric Drive Wet Shotcrete Concrete Spraying Machine For Hydroelectric Works

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

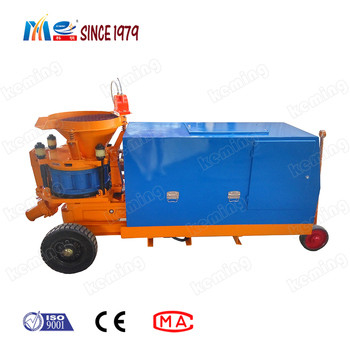

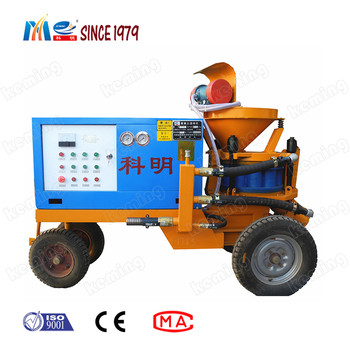

Electric Drive Wet Shotcrete Concrete Spraying Machine For Hydroelectric Works

Electric Drive Wet Shotcrete Concrete Spraying Machine For Hydroelectric Works
Electric Drive Wet Shotcrete Concrete Spraying Machine For Hydroelectric Works
video play

Large Image :  Electric Drive Wet Shotcrete Concrete Spraying Machine For Hydroelectric Works

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE,MA
Model Number: KSP-7 Wet Shotcrete Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 10~20 Work Day
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Detailed Product Description
Product: Wet Shotcrete Machine Drive Mode: Electric Motor
Applicable Materials: Wet Concrete After Warranty Service: Online Support
After-sales Service Provided: Video Technical Support
High Light:

Wet Shotcrete Concrete Spraying Machine

,

MA Concrete Spraying Machine

,

Hydroelectric Works Concrete Spraying Machine

Higher-level-quality KEMING Electric drive wet shotcrete machine for concrete spraying

Wet Shotcrete Machine Introduction:

1. Wet Shotcrete Machine include Electric Shotcrete Machine (KSP-5, KSP-7, KSP-9), Diesel Engine Shotcrete Machine (KSP-5D, KSP-7D, KSP-9D), and Mining Shotcrete Machine (PS6I).

2. Wet shotcrete machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.

3. Concrete mixture gets well mixed, water and cement ratio is accurately controlled.

Wet Shotcrete Machine Features:

1. The machine is widely used for tunnel, culvert, subway, hydroelectric works, underground works and mine laneway.

2. Wet shotcrete machine is designed for spraying half wet or wet concrete.

Wet Shotcrete Machine Parameters:

Model

KSP-7

KSP-9

Capacity

5-7m³/h

7-9m³/h

Conveying distance

35m(WET)/120m(DRY)

30m(WET)/100m(DRY)

Max. aggregate size

20mm

Concrete slump

8~15cm

Conveying Pipe ID.

57mm

Rebound rate

≤10%(on average )

Air consumption

9-10m³/min

10m³/min

Motor power

7.5kw

Max. Pump discharge of accelerator

35-200L/h





Electric Drive Wet Shotcrete Concrete Spraying Machine For Hydroelectric Works 0 Electric Drive Wet Shotcrete Concrete Spraying Machine For Hydroelectric Works 1
