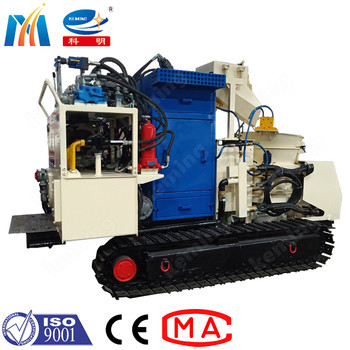

Hydraulic Remote Conveying Concrete Shotcrete Machine Integrated

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Hydraulic Remote Conveying Concrete Shotcrete Machine Integrated

Hydraulic Remote Conveying Concrete Shotcrete Machine Integrated
Hydraulic Remote Conveying Concrete Shotcrete Machine Integrated

Large Image :  Hydraulic Remote Conveying Concrete Shotcrete Machine Integrated

Product Details:
Place of Origin: CHINA
Brand Name: HENAN KEMING
Certification: CE,MA
Model Number: PS7IL-J full hydraulic remote conveying gunite machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 10~20 Work Day
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Detailed Product Description
Product Name: Full Hydraulic Remote Conveying Gunite Machine Cooling Method: Air Cooling
Dedusting Part Capacity: 800m³/h Way Of Walking: Crawler
Theory: Rotory Shotcrete Machine Rotor Speed: 11r/min
High Light:

Remote Conveying Concrete Shotcrete Machine

,

Hydraulic Conveying Concrete Shotcrete Machine

,

Integrated Conveying Concrete Shotcrete Machine

New-tech integrated full hydraulic remote conveying gunite machine reducing spraying dust emission

Remote Gunite Machine Introduction:

1. The friction plate is automatically pressed hydraulically.

2. The friction plate and rotating liner are automatically lubricated.

3. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers.



Remote Gunite Machine Features:

1. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

2. The hydraulically driven crawler chassis travels automatically, which is convenient and fast to move.

3. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the physical and mental health of the operators.

Remote Gunite Machine Parameters:

Spraying part

Capacity

m3/h

2~7

Delivery distance

m

>300

Max. aggregate size

mm

≤20

Delivery pipe ID.

mm

φ51

Air consumption

m3/min

≤8

Feeding height

m

1.15

Rotor speed

r/min

11

Dedusting part

Capacity

m³/h

800

Pressure

Pa

2600

Walking mechanism

Way of walking

Crawler



Walking speed

km/h

≤1.5

Gradeability



≤15

Braking method



Hydraulic

Hydraulic system

Motor Power

kw

18.5

Fuel tank capacity

L

200

Cooling method



Air cooling




Hydraulic Remote Conveying Concrete Shotcrete Machine Integrated 0
