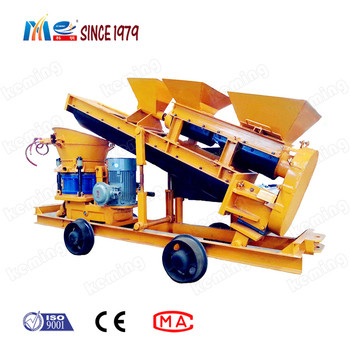

Dry Dump Spraying Concrete Shotcrete Machine With Feeder

Dry Dump Spraying Concrete Shotcrete Machine With Feeder
Dry Dump Spraying Concrete Shotcrete Machine With Feeder

Large Image :  Dry Dump Spraying Concrete Shotcrete Machine With Feeder

Product Details:
Place of Origin: CHINA
Brand Name: HENAN KEMING
Certification: CE,MA
Model Number: JPS7I-L Shotcrete Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 10~20 Work Day
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Detailed Product Description
Product Name: Shotcrete Machine Set Application: Concrete Spraying Machine
Applicable Materials: Dry Dump Or Wet Concrete Mortar Drive Mode: Anti-explosion Motor
Theory: Rotory Shotcrete Machine After Warranty Service: Online Support
High Light:

Dry Dump Concrete Shotcrete Machine

,

Spraying Concrete Shotcrete Machine

,

Rotary Concrete Shotcrete Machine

Superior-quality shotcrete machine set with feeder used even in narrow space like mine

Shotcrete Machine Set Introduction:

Shotcrete machine set with feeder and mixer is composed of the feeding screw system, rotor assembly, air system, spraying system, electric control box, etc..



Shotcrete Machine Set Features:

1. JPS7I-L Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.

2. JPS7I-L Shotcrete Machine Set has fewer dusts, reliable performance, long conveying distance.

3. JPS7I-L Shotcrete Machine Set includes concrete spraying machine, grout making machine, delivery pump and auxiliary piping system.

Shotcrete Machine Set Parameters:

Items

Unit

Technical parameters

Model



JPS7I-L Shotcrete Machine

Capacity

m3/h

5~7

Conveying dist.

m

70/20

Suitable water and cement ratio



≤0.4-0.45

Aggregate size max.

mm

≤20

Conveying pipe ID.

mm

φ50

Operating pressure

MPa

0.2~0.4

Air consumption

m3/min

7-8

Material feeding height

m

1.2

Motor type

kw

5.5/7.5

Voltage

V

380/660 or 660/1140

Machine gauge

mm

600(900)

Dimensions (Length×width×height)

mm

2930×1152×1620

Total weight

kg

1250



Dry Dump Spraying Concrete Shotcrete Machine With Feeder 0
