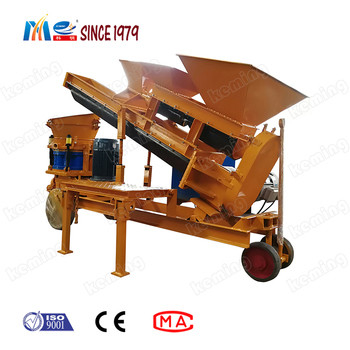

Tunnel Culvert Subway Shotcrete Machine Self Loading With Feeder Mixer

Tunnel Culvert Subway Shotcrete Machine Self Loading With Feeder Mixer
Tunnel Culvert Subway Shotcrete Machine Self Loading With Feeder Mixer

Large Image :  Tunnel Culvert Subway Shotcrete Machine Self Loading With Feeder Mixer

Product Details:
Place of Origin: CHINA
Brand Name: HENAN KEMING
Certification: CE,MA
Model Number: JPS7I-L Shotcrete Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export Wooden Case
Delivery Time: 10~20 Work Day
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Per Month
Contact Now
Detailed Product Description
Air Consumption: 7-8m3/min Max Aggregate Size: 20mm
Warranty: 1 Year Weight: 700kg
Hose Inner Diameter: 51 Mm Voltage: 380V
Highlight:

Tunnel Culvert Subway Shotcrete Machine

,

Self Loading Shotcrete Machine

,

8m3/Min Subway Shotcrete Machine

Premier shotcrete machine with feeder and mixer for tunnel culvert subway

Shotcrete machine with feeder and mixer Introduction:

Keming shotcrete machine with feeder and mixer is composed of the feeding screw system, rotor assembly, air system, spraying system, electric control box, etc..

Shotcrete machine with feeder and mixer Application:

1.JPS7I-L Self-loading Shotcrete Machine can spray half wet or wet concrete.

2. JPS7I-L Self-loading Shotcrete Machine is widely used in coal mine, tunnels, culverts, subway, underground engineering and other narrow space.

Shotcrete machine with feeder and mixer Parameters:



Items

Unit

Technical parameters

Model



JPS7I-L Shotcrete Machine

Capacity

m3/h

5~7

Conveying dist.

m

70/20

Suitable water and cement ratio



≤0.4-0.45

Aggregate size max.

mm

≤20

Conveying pipe ID.

mm

φ50

Operating pressure

MPa

0.2~0.4

Air consumption

m3/min

7-8

Material feeding height

m

1.2

Motor type

kw

5.5/7.5

Voltage

V

380/660 or 660/1140

Machine gauge

mm

600(900)

Dimensions (Length×width×height)

mm

2930×1152×1620

Total weight

kg

1250



Tunnel Culvert Subway Shotcrete Machine Self Loading With Feeder Mixer 0



Tag:

concrete spray shotcrete machine,

pneumatic shotcrete machine,

portable shotcrete machine
