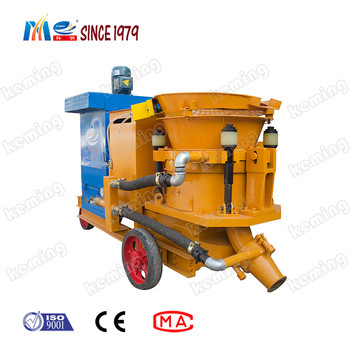

Narrow Space Dedusting Shotcrete Gunite Machine For Concrete Operation

Large Image : Narrow Space Dedusting Shotcrete Gunite Machine For Concrete Operation

Product Details:

Place of Origin:	CHINA
Brand Name:	KEMING
Certification:	CE,MA
Model Number:	KCPZ-6

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Export Wooden Case
Delivery Time:	10~20 Work Day
Payment Terms:	L/C, T/T
Supply Ability:	100 Set/Per Month

Contact Now

Detailed Product Description

Product Name:	KEMING Dedusting Shotcrete Gunite Machine	Power:	5.5-7.5KW
Dust Around The Machine:	≤10mg/m3	Dedust Rate:	≥ 90%
Key Words:	PS4I-J/PS6I-J Dedusting Shotcrete Gunite Machine	Applicable Materials:	Wet/dump/dry Concrete
Capacity:	4/5 Or 6/7m3/h	Theory:	Rotory Theory
Model:	KCPZ-4/6 Dedusting Gunite Machine
Highlight:	Narrow Space Shotcrete Gunite Machine , Dedusting Shotcrete Gunite Machine , Concrete Operation Gunite Machine

Narrow space competitor KEMING dedusting shotcrete gunite machine for concrete operation

Dedusting Gunite Machine Introduction:

1. KEMING dedusting shotcrete gunite machine can be applied in spraying dry, damp and wet mixture.

2. It obtains the Invention Patent and Utility Model Patent.

3. It is a new environmental shotcrete machine, the polution is less than 90% of dust polution of traditional machine.

Dedusting Gunite Machine Application:

1. KEMING dedusting shotcrete gunite machine can be used for dry, half wet or wet concrete spray construction.

2. It has compact machine structure, simple operation, suitable for concrete operation in narrow space.

Dedusting Gunite Machine Parameters:

Capacity	4-5m3/h	5-6m3/h
Delivery	200m/40m(horizontal/vertical)	100m/30m(horizontal/vertical)
Max. aggregate size	≤18mm	≤20mm
Delivery pipe ID.	φ51mm	φ51/57mm
Air consumption	≥7m3/min	≥8m3/min
Dust concentration	≤15mg/m3	≤15mg/m3
Main motor power	5.5kw	7.5kw
Auxiliary motor power	1.1kw	1.1kw
Capacity of accelerator adding hopper	25kg	25kg
