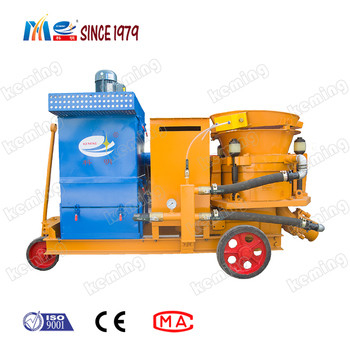

51mm Concrete Spraying Dedusting Gunite Machine 7m3/H 7.5kw

All Products

Concrete Shotcrete Machine (206)

Dry Mix Shotcrete Machine (76)

Wet Mix Shotcrete Machine (44)

Mortar Plastering Machine (131)

Foam Concrete Pump (55)

Small Concrete Pump (46)

Cement Grouting Pump (171)

Mortar Grout Pump (57)

Industrial Hose Pump (111)

Grout Mixer Machine (133)

Screw Air Compressor (16)

Mini Diesel Excavator (6)

Machine Spare Parts (69)

Best Products

13.2kW Concrete Shotcrete Machine

51mm Concrete Spraying Dedusting Gunite Machine 7m3/H 7.5kw

Large Image : 51mm Concrete Spraying Dedusting Gunite Machine 7m3/H 7.5kw

Product Details:

Place of Origin:	CHINA
Brand Name:	KEMING
Certification:	CE,MA
Model Number:	KCPZ-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Export Wooden Case
Delivery Time:	10~20 Work Day
Payment Terms:	L/C, T/T
Supply Ability:	100 Set/Per Month

Contact Now

Detailed Product Description

Product Name:	KEMING KCPZ Dedusting Gunite Machine	Max Aggregate Size:	20 Mm
Dust Around The Machine:	≤10mg/m3	Dedust Rate:	More Than 90%
Spraying Hose Id.:	51mm	Applicable Materials:	Wet / Dry / Dump Concrete
Capacity:	4/5/6/7m3/h	Theory:	Rotory Shotcrete Machine
Model:	KCPZ-4/6 Dedusting Gunite Machine
Highlight:	51mm Spraying Dedusting Gunite Machine , Dedusting Gunite Machine 7m3/H , Dedusting Gunite Machine

solution to spraying pollution KEMING KCPZ dedusting gunite machine with invention patent

Dedusting Gunite Machine Introduction:

1. KCPZ Dedusting gunite Machine can be applied in spraying dry, damp and wet mixture.

2. It obtains the Invention Patent and Utility Model Patent.

3. It is a new environmental shotcrete machine, the polution is less than 90% of dust polution of traditional machine.

Dedusting Gunite Machine Application:

1. KCPZ Dedusting gunite machine can be used for dry, half wet or wet concrete spray construction.

2. It has compact machine structure, simple operation, suitable for concrete operation in narrow space.

Dedusting Gunite Machine Parameters:

Capacity	4-5m3/h	5-6m3/h
Delivery	200m/40m(horizontal/vertical)	100m/30m(horizontal/vertical)
Max. aggregate size	≤18mm	≤20mm
Delivery pipe ID.	φ51mm	φ51/57mm
Air consumption	≥7m3/min	≥8m3/min
Dust concentration	≤15mg/m3	≤15mg/m3
Main motor power	5.5kw	7.5kw
Auxiliary motor power	1.1kw	1.1kw
Capacity of accelerator adding hopper	25kg	25kg
