| Product Name: | KEMING KPZ Diesel Gunite Shotcrete Machine | Max Aggregate Size: | 20 Mm |
|---|---|---|---|
| Water Cement Ratio: | ≤0.4~0.45 | Function: | Spraying Shotcrete |
| Spraying Hose Id.: | 51mm | Applicable Materials: | Wet Concrete / Dry Concrete |
| Capacity: | 3-9m3/h | Theory: | Rotory Shotcrete Machine |
| Model: | KPZ-3/4/5/7/9D Diesel Gunite Machine | ||
| High Light: | Gunite Concrete Spray Shotcrete Machine,Diesel Concrete Spray Shotcrete Machine,Concrete Spray Shotcrete Machine 9m3/H |
||

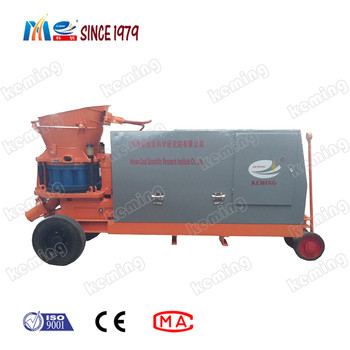

1. KPZ Diesel gunite Machine can be applied in spraying dry, damp and wet mixture.
2. It is consisted of driving device, rotor assembly, air system, concrete spraying system.
3. KPZ Diesel gunite Machine has rational structure, stable performance, advanced technology, convenient operation and long service life.
1. Diesel gunite shotcrete machine can be used for dry or half wet concrete spray construction.
2. It is widely used in the tunnel, culvert, subway, hydroelectric works, underground works, slope reinforcement and high-methane laneway of coal mine etc.
KPZ Series (Diesel Engine)
| Model | KPZ-3D | KPZ-4D | KPZ-5D | KPZ-7D | KPZ-9D |
| Output | 2-3m3/h | 3.5-4.5m3/h | 4.5-5.5m3/h | 6-7m3/h | 7.5-8.5m3/h |
| Max.Conveying dist. | 250m | 230m | 200m | 150m | 100m |
| Max.aggregate size | 15mm | 18mm | 15mm | 20mm | 20mm |
| Hose inner diameter |
φ42/51mm |
φ51mm |
φ51mm |
φ57mm |
φ57mm |
| Air consumption | 5-6m3/min | 6-7m3/min | 7-8m3/min | 8-9m3/min | 9-10m3/min |
| Motor power | 6.9KW(10hp) | 13KW(18hp) | 13KW(18hp) | 16.2KW(22hp) | 16.2KW(22hp) |
