Product Details:
Payment & Shipping Terms:
|

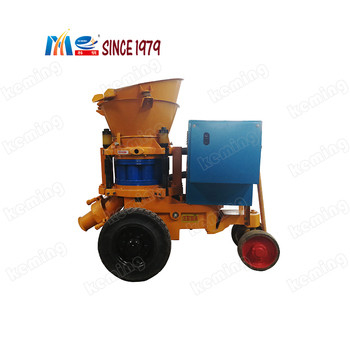

| Product Name: | KPZ-3/4/5/7/9 Dry Gunite Machine | Pressure: | 0.6Mpa |
|---|---|---|---|
| Max Aggregate: | 20mm | Main Power: | 7.5kW |
| Horz. Distance: | 100m | Vert. Distance: | 40m |
| Capacity: | 7~9m3/h | Theory: | Rotory Shotcrete Machine |
| Output: | 3/4/5.5/6.5/8.5m3/h | COLOR: | Customer's Requirement |
| High Light: | Mine Dry Gunite Shotcrete Machine,Electric Motor Gunite Shotcrete Machine,Gunite Shotcrete Machine 9m3/H |
||
1. Electric dry shotcrete machine is designed for spraying dry, damp and wet mixture.
2. Electric dry Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box.
3. It has advanced technology, rational structure, convenient operation, stable performance and long service life.
1. Electric dry shotcrete machine can be used for dry or half wet concrete spray construction.
2. It is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
| KPZ Series (Electric motor) | |||||
| Model | KPZ-3 | KPZ-4 | KPZ-5/PC5I | KPZ-7 | KPZ-9 |
| Output | 2-3m3/h | 3.5-4.5m3/h | 4.5-5.5m3/h | 6-7m3/h | 7.5-8.5m3/h |
| Max. conveying dist. | 250m | 230m | 200m | 150m | 100m |
| Max. aggregate size | 15m | 18m | 20m | 20m | 20m |
| Hose inner diameter | φ42/51mm | φ42/51mm | φ51mm | φ57mm | φ57/64mm |
| Air consumption | 5-6m3/min | 6-7m3/min | 7-8m3/min | 8-9m3/min | 9-10m3/min |
| Motor power | 3kw | 5.5kw | 5.5kw | 7.5kw | 7.5kw |
