Product Details:
Payment & Shipping Terms:
|
| Air Consumption: | 7-18 M3/min | Max Aggregate Size: | 20mm |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 110kg |
| Voltage: | Customized | Power(w): | 7.5 Kw |
| Condition: | New | ||
| High Light: | Remote Rotor Concrete Shotcrete Machine,7.5kw Spraying Concrete Shotcrete Machine |
||

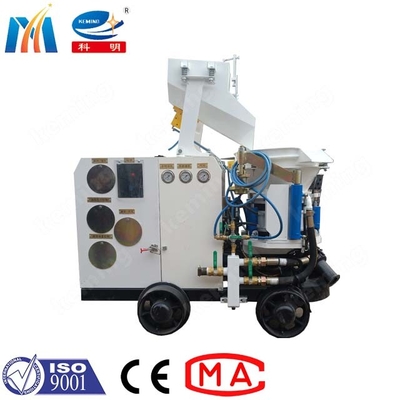

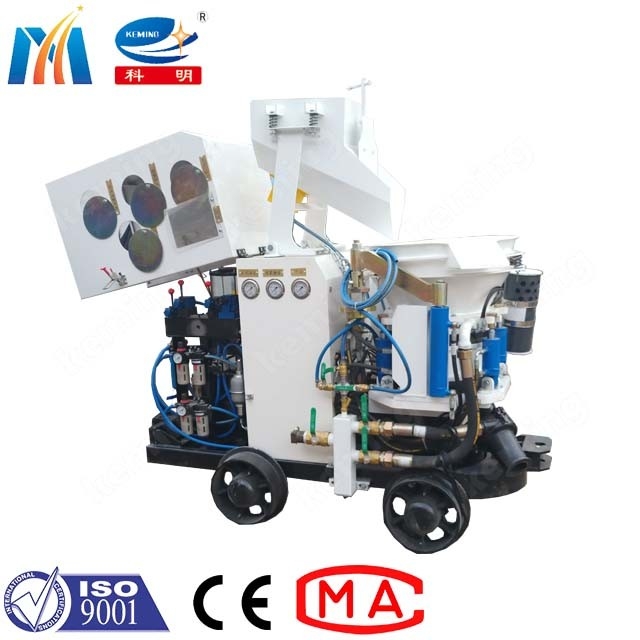

7.5kw Mini Remote Rotor Shotcrete Machine For Long Distance Concrete Spraying
Introduction:
Rotor shotcrete machine is a special equipment for pneumatic conveying concrete in coal mine construction. The machine has a dust cover, which can effectively prevent dust from being sprayed; it has a sealing lubrication system, a hydraulic automatic compressing system, and an automatic adding system for accelerator agents, which can improve the service life of seals and reduce dust.
The overturning of the hopper seat and the lifting of the rotor body are hydraulically driven to reduce the maintenance workload. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically. It has the characteristics of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, and long service life.
Working principle:
The concrete material is added to the vibrating hopper, passes through the screen mesh and falls to the straight-through material cavity of the rotor, and rotates with the rotor to the discharge port, where it is blown into the discharge elbow by the compressed air which introduced by the air path, and then enters the conveying pipe, sending out.
The rotor type shotcrete machine is mainly composed of driving device, rotor assembly, sealing system, vibrating hopper, pneumatic system, hydraulic system, sealing lubrication system, accelerator adding system and shotcrete volume adjustment system.
Parameter:
| Basic performance parameter | Unit | Parameter |
| Max. capacity | m3/h | 3~5 |
| Max. Conveying distance | m | 300 |
| Max. Aggregate size | mm | Ф20 |
| Inner diameter of conveying tube | mm | Ф51/57 |
| External air source pressure | MPa | ≥0.6 |
| Air consumption | m3/min | 7~18 |
| Feeding height | m | 1.16 |
| Rotor rotation speed | r/min | 11 |
| Motor power | kW | 7.5 |
| Voltage | V | 380/660 or 660/1140 |
| Dimension(L×W×H) | mm | 1620×784×1660 |
| Whole machine weight | kg | 1110 |
Certification:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
