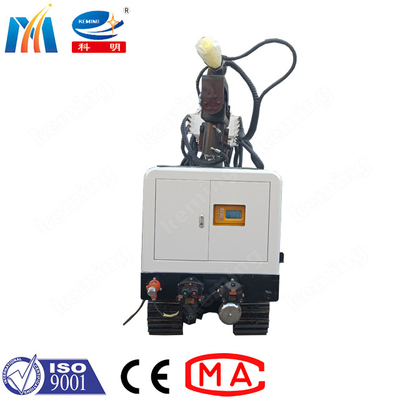

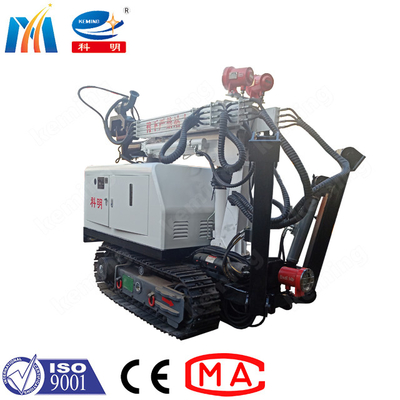

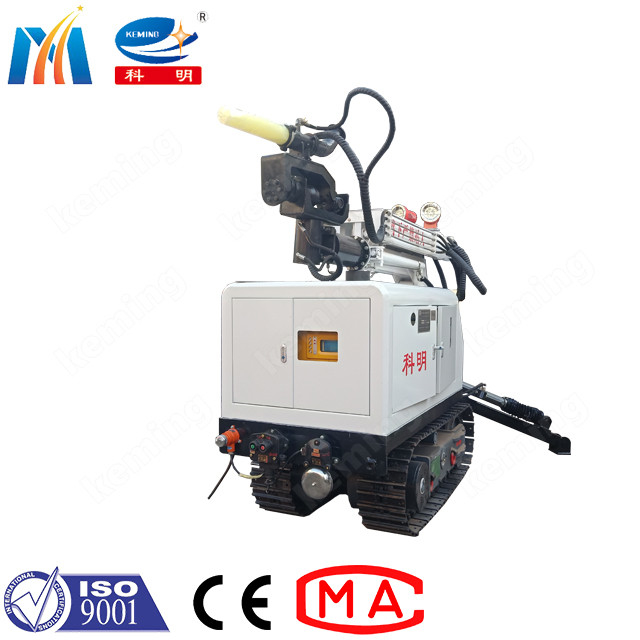

KPZ-6A Remote Shotcrete Robot Flexible Concrete Spraying Arm For Underground Engineering
1. KPC-6A Shotcrete robot is an ideal equipment for any working space, even in narrow tunnel construction.
2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.
3. It can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.
1. Concrete spray is suitable for dry, wet or wet and dry mixing. 2.independent hydraulic drive, 2 hydraulic legs, greatly improving the stability of the equipment during the spray process.
3. The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.
4. unique protective cover, can protect the robot arm.
|whole machine||model||KPC-16A shotcrete machine|
|minimum turning radius||22mm|
|maximum aggregate particle size||≤16mm|
|boom and support||boom structure||2 sections of telescopic boom ≥8.4m|
|lift height||retraction length 3.4m|
|boom rotation angle||-2m|
|axle steering angle of spray nozzle||320°|
|vertical steering angle of spray nozzle||360°|
|swing angle of spraying nozzle||240°|
|center width of front leg cylinders||2180mm|
|center width of rear leg cylinders||2180mm|
|center distance between front and rear leg cylinder||5030mm|
|control type||full remote control|
|driving mode||diesel engine or electrical engine|
|pumping system||driving mode||electrical engine|
|motor rated power||55 kw|
|inner diameter of delivery cylinder||160mm|
|effective stroke of delivery cylinder||1000mm|
|concrete discharge pressure||10MPa|
|max. theoretical capacity of accelerator pump||9 L/min|
|max. theoretical discharge pressure of accelerator pump||1.8 MPa|
|delivery pipe diameter||125-80mm, reducer pipe|
|spraying nozzle diameter||50mm|
|truck chasis||diesel engine||4105 turbo charged diesel engine|
|engine power||96-115 kw|
|front axle wheel base||1940mm|
|rear axle wheel base||1860mm|
|tyre||1000 steel wire tyre|
|fuel tank volume||more than 160L|
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
