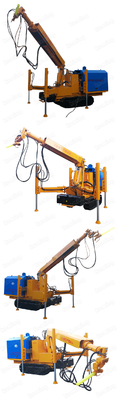

11Kw Wet Concrete Spraying Machine For Tunnel Construction

11Kw Wet Concrete Spraying Machine For Tunnel Construction

  • High Light

    11Kw Wet Concrete Spraying Machine

    ,

    Mining Well Concrete Spraying Machine

    ,

    Tunnel Construction Concrete Spraying Machine

  • Max Aggregate Size
    20mm
  • Warranty
    1 Year
  • Weight
    3000 Kg
  • Dimension(l*w*h)
    4500x1080x2200 Mm
  • Power(w)
    11 Kw
  • Condition
    New
  • After-sales Service Provided
    Instruction Book, Online Support
  • Certification
    CE, ISO, MA
  • Color
    Customized
  • Product Name
    Shotcrete Robot
  • Place of Origin
    Zhengzhou
  • Brand Name
    KeMing
  • Certification
    CE, MA, ISO
  • Model Number
    KPC 8A
  • Minimum Order Quantity
    1 set
  • Packaging Details
    wooden box, nude packing
  • Delivery Time
    2-3weeks
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    20 sets per month

11Kw Wet Concrete Spraying Machine For Tunnel Construction

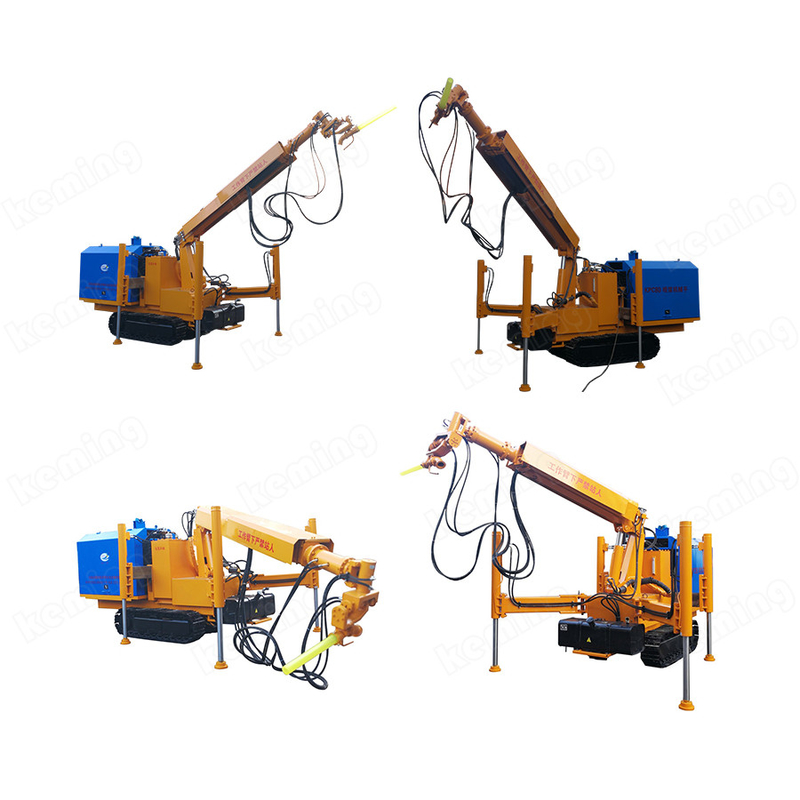

11 Kw Wet Concrete Spraying Gunite Machine 8m Spraying Width Shotcrete Robt With Spraying Nozzle



Application:

1. KPC-80 Shotcrete robot is an ideal equipment for any working space, even in narrow tunnel construction.
2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.
3. It can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.



Features:

1. KPC-80 Shotcrete robot is suitable for spraying dry concrete, wet concrete or wet and dry mixture.
2. It adopts independent hydraulic drive and 4 hydraulic legs, which greatly improves the stability of the equipment during the spray process.

3. It adopts explosion-proof electrical design, which makes it acceptable in underground coal mine.
4. It is equipped with unique protective cover, which can protect the robot arm.



1. Euitable for narrow roadways
The compact structure of the robot, suitable for wet or dry type mixing shotcrete equipment, is ideal for any work space or even for narrow tunnel construction. The four hydraulci legs ensure maximum stabilty during constant spraying.
2. Easy to operate and easy to maintain
The mobile concrete spraying system can be remotely controlled. The detechable shield protects the spray arm from concrete rebound and allows for quick repairs. And it can quickly allow maintains work.
3. Retactable mechanical spray arm
The retractable mechanical spray arm covers an area of 7.8m and is combined witha shotcrete equipment to provide optimum spray results.
4. Robotic arm:comppact, flexible and efficient
Support for slop stabilization, excavation support, tunnel, coal mines or small shafts in power station construction can be completed. Equipment with a retractable robotic arm, it can reach a coverage of more than 8 m and complete the project quickly and efficiently.



Specification:

Basic items Unit Parameter
Whole machine Total weight kg 4000
Dimension in transport mode mm 4500x1080x2200
Required width for shotcrete arm retraction m 4.1
Outrigger expansion width m 2.5
Boom and spraying nozzle Equiped shotcrete machine capacity m3/h 5-15
Maximum spraying height m 8
Maximum spraying width m 11
Maximum working height m 7.1
Maximum boom expansion length(with spraying nozzle) m 6.1
Boom frame telescopic distance m 2.6
Boom rotation angle ° lift 90, right 270
Boom elevation angle ° 60°/30°
Working angle of vertical swing cylinder ° 360°
Working angle of axle swing cylinder ° 240°
Spraying hose ID mm 51,57,64
Travelling mechanism Walking mode   crawler type, hydraulic motor+reducer
Walking speed km/h 0.7-1.5
Maximum gradient of walking % 20
Width of crawler mm 250
Wheel base mm 1317
Ground clearance mm 390mm
Ground pressure MPa 0.006
Hydraulic system Hydraulic oil pump type   load sensing plunger pump
Hydraulic oil pump capacity ml/r 28
Maximum walking pressure MPa 21
Boom multi-way valve type   anti-explosion electrical hydraulic preportional multi-way valve
Oil tank volume   200 L
Electrical system Motor type   YBK3-160M-4,11 KW
Rated voltage   660/1140
Mining explosion proof and intrinsically safe vehicle-mounted wireless recover   FWS40
Mining intrinsically safe remote transmitter   FYF40

Certification:

In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

11Kw Wet Concrete Spraying Machine For Tunnel Construction 011Kw Wet Concrete Spraying Machine For Tunnel Construction 111Kw Wet Concrete Spraying Machine For Tunnel Construction 2

Why choose us:

11Kw Wet Concrete Spraying Machine For Tunnel Construction 3

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

11Kw Wet Concrete Spraying Machine For Tunnel Construction 411Kw Wet Concrete Spraying Machine For Tunnel Construction 511Kw Wet Concrete Spraying Machine For Tunnel Construction 6

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

11Kw Wet Concrete Spraying Machine For Tunnel Construction 711Kw Wet Concrete Spraying Machine For Tunnel Construction 8

Exhibition:

Bauma Shanghai 2018

11Kw Wet Concrete Spraying Machine For Tunnel Construction 911Kw Wet Concrete Spraying Machine For Tunnel Construction 10

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
