Payment & Shipping Terms:
|Condition:||New||Certification:||CE, ISO, MA|
|Application:||Grouting Project||Product Name:||Grouting Mixer|
|Type:||Cement Slurry Mixing||Output:||300 L|
Two Barrel Concrete Spraying Machine,
Grouting Concrete Spraying Machine,
Cement Slurry Mixing Shotcrete Machine

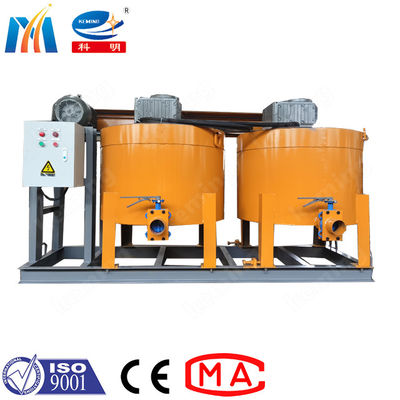

Two Barrel Grouting Concrete Spraying Machine 5.5Kw Cement Slurry Mixing
The grouting mixer is a special equipment for cement mixing. It has the characteristics of small dust next to the machine, compact structure, reliable performance, simple operation, convenient maintenance and cleaning, etc. It is an ideal choice for cement mixing operations.
The height of the two barel only 140mm, which is very easy to feed the raw material cement for operator, which release the labor intensity.
Machine structure and working principle:
The grouting mxier is mainly composed of a motor, a reducer, a belt pulley, a barrel, a mixing blade, a discharge valve, an unitary base, etc. (see figure). This machine is mainly used in conjunction with a grouting pump, and can also be used for slurry mixing in other industries.
Its working principle is: the motor reducer drives the mixing shaft to rotate. The mixing blade is equipped with mixing blades inside the barrel. The rotation of the mixing blades is used to make the cement slurry. After the mixing is completed, the slurry suction pipe of the grouting pump can pumped it out; at the same time, the slurry discharge butterfly valve can be opened, and the material will be discharged to the storage hopper and then pumped. After the pumping is completed, water and cement are added to the barrel to proceed to the next slurry mixing.
|Mixing method||—||Forcing type|
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
Bauma Shanghai 2018
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
