| Capacity: | 4.5~5.5m3/h | Pressure: | 0.6Mpa |
|---|---|---|---|
| Max Aggregate: | 20mm | Main Power: | 5.5kW |
| Horz. Distance: | 200m | Vert. Distance: | 40m |
| Highlight: | concrete spray shotcrete machine,pneumatic shotcrete machine |
||
|
Model
|

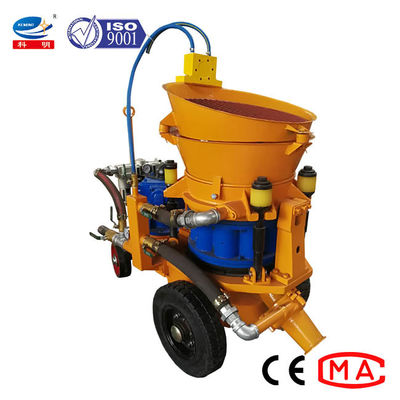

KPZ-5A Pneumatic Shotcrete Machine
|
|
Capacity
|
4.5-5.5 m3/h
|
|
Max. conveying dist.
|
≤200 m
|
|
Water-cement ratio
|
≤0.4
|
|
Max. aggregate size
|
20 mm
|
|
Delivery hose ID.
|
φ51 mm
|
|
Working pressure
|
0.2-0.6 MPa
|
|
Air consumption
|
8 m3/min
|
|
Air consumption of air motor
|
8 m3/min
|
|
Dimensions(Length×width×height)
|
1520×820×1200 mm
|
|
Total weight
|
600 kg
|
1. KPZ-5A Pneumatic Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
2. KPZ-5A Air Motor Small Portable Mix Concrete Dry Shotcrete Machinee can be used for dry or half wet concrete spray construction.
1. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).
2. KPZ-5A Pneumatic Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, air motor etc.
3. KPZ-5A Pneumatic Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.
