| Capacity: | 5~7m3/h | Aggregate Size: | 18mm |
|---|---|---|---|
| Pipe ID: | 80mm | Pressure: | 3~10Mpa |
| Highlight: | concrete mixer pump,mini concrete pump machine |
||
| Model |

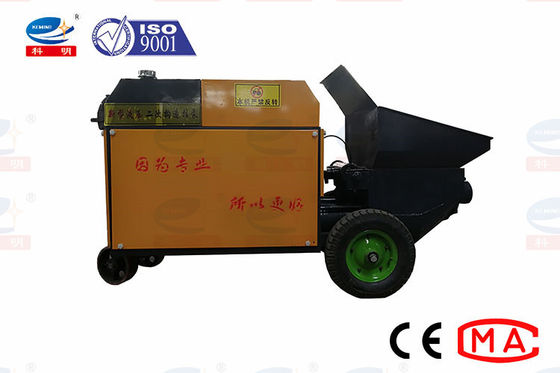

KS-8 concrete pump
|
|
Max capacity
|
7~8 m³
|
|
Working theory
|
S valve
|
|
Feeding height
|
0.7m
|
|
Max aggregate size
|
5~20mm
|
|
Max pressure: working pressure
|
15MPa: 10MPa
|
|
Hydraulic oil cooling type
|
Air cooling
|
|
Max vertical distance
|
20m
|
|
Max horizontal distance
|
50m
|
|
Delivery pipe ID.
|
80mm/100mm
|
|
Motor power
|
15kw
|
|
Weight
|
600kg
|
|
Dimensions
|
1800*700*1100mm
|
1. Pumping wet-mixed mortar for high buildings and secondary structure construction.
2. KS Series concrete pump is widely used for secondary construction filling, reinforcement grouting, fillback grouting and bolt supporting in floor heating engineering, roofing, high-rise building walls, reservoirs, hydropower stations, ports, docks, foundation treatment, soft foundation, tunnels, subways, mining construction etc.
1. Small size, compact structure, convenient operation and movement.
2. Full hydraulic system, stable performance,long pumping distance.
3. S tube distribution valve, pumping larger aggregates mortar/concrete.
